Introduction

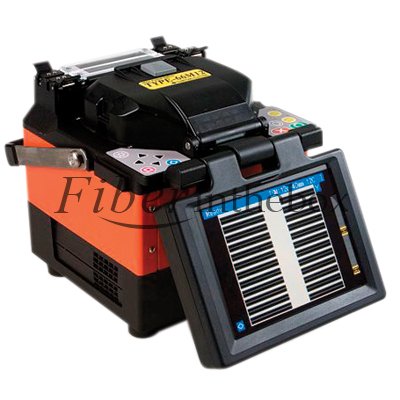

The Type-66 TuffCat mass fusion splicer features the industry's first Dual-Automatic-Splice Protection Sleeve Heater System - Sumitomo's exclusive patent-pending system. The dual heater system's simultaneous operation helps to eliminate squandered time waiting for a single heater system to complete its cycle. Instead, the streamlined splicing process reduces the bottle neck of "heater wait time" by 88% improving mass splicing efficiency and productivity in the field by 70%.
Features
Dual Independent Splice Protection Sleeve Heaters
RoHS Compliant
Optional Splice-on-connector Heater
5.6" Switchable Color Monitor for Front to Back or Back to Front Operation
Automatic Splice Sta
Automatic Heater Sta
Fiber Alignment Vibration clamps
Extended Life Battery 140 Splices & Heater Cycles per Charge
User-Friendly Menu Slection System with on Screen Assistance
Spanish Language Option Standard
24-Hour Technical Suppo via 888-SPLICER
Type 66-Kit-1 Components
T-66 Ribbon Fusion Splicer with Built-in Dual Heat Shrink Ovens
250um Fiber Holders
12ct Ribbon Fiber Holders
Heated Jacket Remover
Precision Cleaver
Spare Electrodes
AC Interface/Battery Charger
Battery Charger Cable
Battery
Power Cord
Shrink Sleeve Cooling Tray
Spare Electrodes
Hard Transit Case
V-Groove Brush
Manual
Specifications
|
|
|
Alignment Method
|
Fixed V-groove
|
|
RoHS
|
Compliant (engineered to be more environmentally friendly)
|
|
Fiber Requirement
|
Silica Glass
|
|
Number of Fibers
|
1-12
|
|
Fiber Placement
|
Fiber Holder System (Unified Holders for Type-25e/Type-66/Type-65)
|
|
Cladding Diameter
|
125μm
|
|
Coating Diameter
|
Ribbon 250μm
Single: 250 and 900μm
|
|
Typical Splice Time
|
20 seconds
|
|
Typical Splice Loss, Identical Fibers
|
SMF: 0.04dB, MMF:0.03dB, NZ-DSF: 0.07
|
|
Built-In Dual Splice Protection
|
Dual Independent Splice Protection
Sleeve Heater Sleeve Heaters
|
|
Heater Cycle Time
|
Heater 1 40 seconds
Heater 2 40 seconds
|
|
Arc Test Compensation
|
Automatic
|
|
DC (Battery Operation)
|
Standard: 70 Splices & Heater Cycles
Extended Life: 140 Splices & Heater Cycles
|
|
Arc Test
|
Automatically Compensates for
Environmental Conditions
|
|
Interface
|
USB for PC Interface
RCA Jack for External Monitor
12 Volt DC Output for Accessories
|
|
Display Type
|
5.6 Inch Color TFT Low Glare High Resolution
Color Monitor
|
|
Display Positions
|
Multiple Positional for Front to Back/ Back to
Front Work Flow
|
|
Selectable Language Options
|
18 Language Options including Spanish
|
|
Lynx—CustomFit™ Splice-On Connector
|
Compatible
|
|
Splice Data Storage
|
2000 Splice Points
|
|
Size
|
150W x 150D x 150H mm (5.9W x 5.9D x 5.9H)
|
|
Weight
|
2.7 kg (5.95 lbs)
|
|
Power Requirement
|
Input: 100 to 240V AC; 5-/60Hz, 12V DC
|
|
Display
|
5.6 Inch TFT Low Glare High Resolution Color Monitor
|
|
Wind Protection
|
30 mph (15 m/s)
|
|
Battery Operation
|
Standard 70 Splices & Heater Cycles
Extended Life 140 Splices & Heater Cycles
|
|
|
|
Alignment Method
|
Fixed V-groove
|
|
RoHS
|
Compliant (engineered to be more environmentally friendly)
|
|
Fiber Requirement
|
Silica Glass
|
|
Number of Fibers
|
1-12
|
|
Fiber Placement
|
Fiber Holder System (Unified Holders for Type-25e/Type-66/Type-65)
|
|
Cladding Diameter
|
125μm
|
|
Coating Diameter
|
Ribbon 250μm
Single: 250 and 900μm
|
|
Typical Splice Time
|
20 seconds
|
|
Typical Splice Loss, Identical Fibers
|
SMF: 0.04dB, MMF:0.03dB, NZ-DSF: 0.07
|
|
Built-In Dual Splice Protection
|
Dual Independent Splice Protection
Sleeve Heater Sleeve Heaters
|
|
Heater Cycle Time
|
Heater 1 40 seconds
Heater 2 40 seconds
|
|
Arc Test Compensation
|
Automatic
|
|
DC (Battery Operation)
|
Standard: 70 Splices & Heater Cycles
Extended Life: 140 Splices & Heater Cycles
|
|
Arc Test
|
Automatically Compensates for
Environmental Conditions
|
|
Interface
|
USB for PC Interface
RCA Jack for External Monitor
12 Volt DC Output for Accessories
|
|
Display Type
|
5.6 Inch Color TFT Low Glare High Resolution
Color Monitor
|
|
Display Positions
|
Multiple Positional for Front to Back/ Back to
Front Work Flow
|
|
Selectable Language Options
|
18 Language Options including Spanish
|
|
Lynx—CustomFit™ Splice-On Connector
|
Compatible
|
|
Splice Data Storage
|
2000 Splice Points
|
|
Size
|
150W x 150D x 150H mm (5.9W x 5.9D x 5.9H)
|
|
Weight
|
2.7 kg (5.95 lbs)
|
|
Power Requirement
|
Input: 100 to 240V AC; 5-/60Hz, 12V DC
|
|
Display
|
5.6 Inch TFT Low Glare High Resolution Color Monitor
|
|
Wind Protection
|
30 mph (15 m/s)
|
|
Battery Operation
|
Standard 70 Splices & Heater Cycles
Extended Life 140 Splices & Heater Cycles
|
