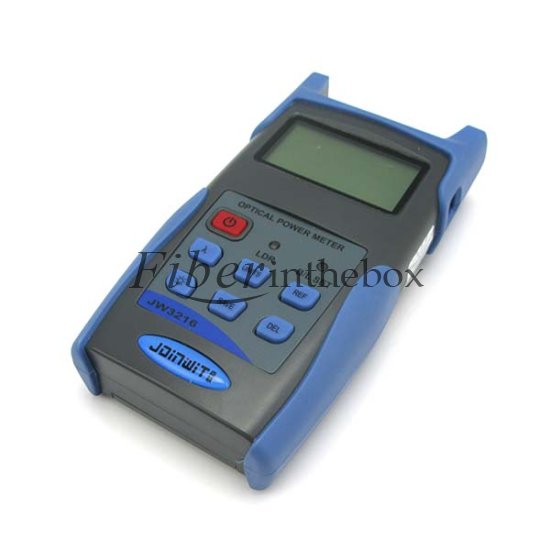

Joinwit JW3216A Handheld Optical Power Meter(-70~+6dBm)

SKU#:FITB05927MIH
Model#: JW3216A
MFG PART#: JW3216A
Price: US$ 200.45
Sold: 2670
Availability: In Stock
Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Introduction

JW3216 Handheld Optical Power Meter is Joinwit newly designed optical fiber tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with JW3116 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the JW3216 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the JW3216 optical power meter features good appearance, good touch feeling and considerate humanity design.

Features
. Wave IDAuto wavelength identification & switching
. Frequency ID ---Auto frequency identification
. 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
. Intelligent backlight
. 1000 records storage or download via USB cable
. USB communication po for saved testing records download
. Reference power level can be set up and stored
. User self-calibrating function
. Auto-off function
. Up to 200hrs battery life
Standard Packages
Model Includes
All JW3216 Models JW3216 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
Kind Note
We provide FC, ST, SC Connector for choose. If no special requirement, we will send you the FC connector.
If you need more than one connector, please contact our sales at  sales@fiberinthebox.com  for more details because the price would be different



Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new JW3205 power meter at a large quantity.
View Detailshttps://www.Fiberinthebox.com




SPECIFICATIONS

Model

JW3216A

JW3216C

Calibrated(nm)

850, 1300,1310,1490,1550,1625

Detector type

InGaAs

Measurement Range(dBm)

-70~+6

-50~+26

Uncertainty (dB)

±0.15,3.5%‰

linearity (dB)

±0.02

Display resolution(dB)

0.01

Frequency ID(Hz)

270,330,1K,2K

Wave ID(nm)

1310,1490,1550,1625

Date storage capacity

1000

Communication Port

USB

Optical Connector type

FC,SC,ST interchangeable

Alkaline battery

3*AA(1.5V)

Power Supply Adaptor(V)

8.4

Battery Operating time (h)

200

Operation Temperature(℃)

-10~+60

Storage Temperature(℃)

-25~+70

Outline size(mm)/weight

180*90*45(250g)
