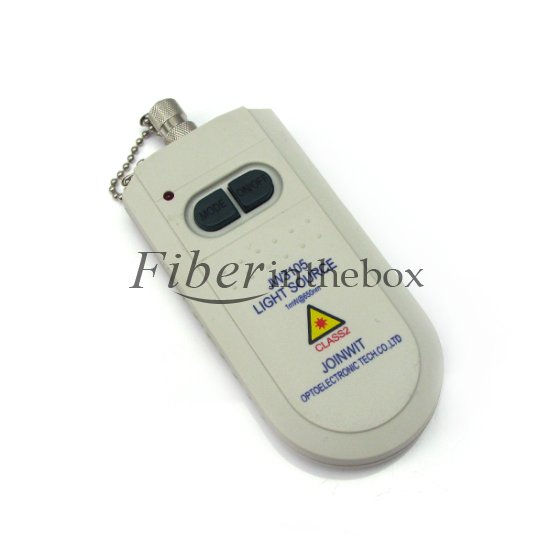

JW3105 Visual Fault Locator with 2.5mm Universal Adapter(10km)

SKU#:FITB74142EOQ
Model#: JW3105-2
Price: US$ 54.15
Sold: 4203
Availability: In Stock
Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
JW3105 Visual Fault Locator is used for the measurement in single-mode or multi-mode fibers. It features a rugged design, a universal connector and an accurate measurement. The JW3105 visual fault locator easily identifies the cutting, micro-bending of the optic fiber, passes through the jacket fiber and performs an end-to-end fiber identification.
It is an ideal tool for the examination of all kinds of patch cords and ribbon or bunched pigtails in the installation and maintenance of optical fiber networks. The inspection distance of this JW3105-2 visual fault locator is 10km. And for its operating temperature is -10~+60 ℃ and storage temperature to be -25~+70℃, it means that it can be used and stored in a more hostile environment than common visual fault locators.

Features
Detects breaks, micro-bends even through jacketed fibers
End-to-end visual fiber identification
Locates faults up to 5km along the fiber.
Mechanical fusion splice optimization
Compact size and light weight, suitable for field testing

Application
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements



Order Information
MODEL

INCLUDES

JW3105

JW3105 Visual Fault Locator, User Manual, Cotton swabs and Protective Holster.

View Detailshttps://www.Fiberinthebox.com
Specifications

Type

JW3105

Wavelengths(nm)

650±10nm

Fiber Model

SM,MM

Spectral Width(nm)

10km

Emission

CW, 2Hz can be optional

Optical Connector

FC/ Universal 2.5mm adaptor

Power Supply

2pcs AA alkaline batteries

Battery Operating Time

 30 hours

Operating Temperature(℃)

-10~+60

Storage Temperature(℃)

-25~+70

Dimension(mm)

100 x 50 x 25
