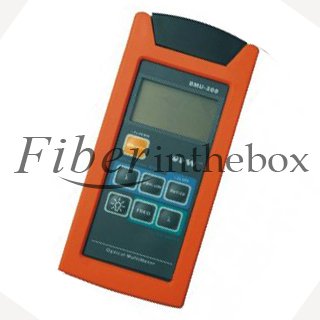

Handheld Optical Multi Meter BMU300/301 (Power Meter& Light Source)

It integrates both an optical power meter module and an optical light source module and can perform closed-loop tests by using both modules. Compared with other multi meters, it is smaller and much lighter.



Combine the power meter and laser source in one unit
Wide dynamic range: Max to 78 dB
High resolution: 0.01dB
Good accuracy: ± 0.2dB
Can test the loss of the fiber
High stabilization of laser source
850nm, 1300nm, 1310nm, 1490nm,1550nm,1625nm test point
BMU300 is for telecom test, BMU301 is for CATV test
Energy save mode: about 10 minutes,no operation will cause the device auto power off (can be cancelled)
Reference value set for each wave



Power meter and laser source
Test the loss of the fiber



BMU300 / BMU301 Optical Multi Meter, Carrying bag, User’s manual, Box, Calibration ce ification



The Fiber Optic Multimeter is an integrated unit of power meter and light source, it can satisfy the user by providing a choice of greater convenience and more advantages. Fiberinthebox can provide all this kind of products with one year warranty. If you are interested in the handheld optic multi meter BMU300/301, welcome to contact us.

	BMU-300	BMU-301
	Laser Source
Wavelength (nm)	1310 & 1550 (1300 & 850)
Output Power	>-6.0dBm
Modulation	270Hz, 1KHz, 2KHz
	Power Meter
Measuring Range	+8 ~ -70dBm	+26 ~ -50dBm
Display Resolving Power	0.01dB
Accuracy	0.01db± 2%
Calibrated Wavelengths	850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Tone Detector	+5 ~ -40 dBm	+20 ~ - 25 dBm
Reference Value Set	Yes
Connecting Adaptor	FC/PC & Universal
Auto Power Off	No operation in 10 minutes (can be cancelled),Low battery energy
Battery Charge	Yes
Power Supply	2 * AA batteries or AC/DC adapter
Size	160mm * 75mm * 32mm
