Includes all the outstanding functions of handheld stable light source(JW3108)
Switching of the power meter function and that of the light source by menu operation
Different light sources and power meters can be built into JW3207
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements

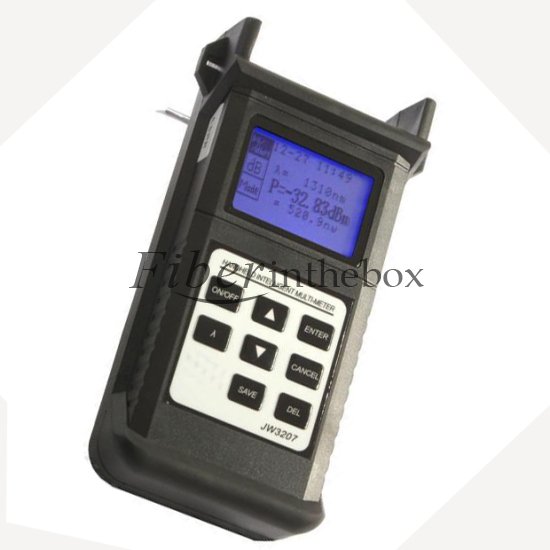

The Fiber Optic Multi meter is an integrated unit of power meter and light source, it can satisfy the user by providing a choice of greater convenience and more advantages. Fiberinthebox can provide all this kind of products with one year warranty. If you are interested in this JW3207 Handheld Optical Multi Meter, welcome to contact us.We will provide you the best service.
|
Type |
JW3207A |
JW3207C |
|
Optical Power Meter Module |
||
|
Detector Type |
IngaAs |
|
|
Measurement Range(dBm) |
-70~+6 |
-50~+25 |
|
Uncertainty |
5% |
|
|
Calibrated wavelengths(nm) |
850,980,1300,1310,1490,1550 |
|
|
Resolution(dB) |
0.01 |
|
|
Data Storage Capacity |
240 data items |
|
|
Optical Connector |
FC(interchangeable SC,ST) |
|
|
Identification Frequency Rang |
10Hz~60KHz |
|
|
Optical Light Source Module |
||
|
Emitter Type |
FP-LD |
|
|
Wavelengths |
1310/1550(other wavelengths can be optional) |
|
|
Output Power(dBm) |
-7 |
|
|
Spectral Width |
≤10nm |
|
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|
|
Modulation Frequencies |
270Hz, 1KHz, 2KHz |
|
|
Optical Connector |
FC/ PC |
|
|
General of Multimeter |
||
|
Power Supply |
Rechargeable Battery + Power Supply Adapter |
|
|
Communication Interface |
RS232 |
|
|
Battery Operating Time |
≥6 hours(Both Power Meter and Light Source are working) ≥28hours(Only Power Meter is working) |
|
|
Auto-off time |
10mins |
|
|
Operating Temperature(°C) |
-10~+60 |
|
|
Storage Temperature(°C) |
-25~+70 |
|
|
Dimension(mm) |
210x115x55 |
|
