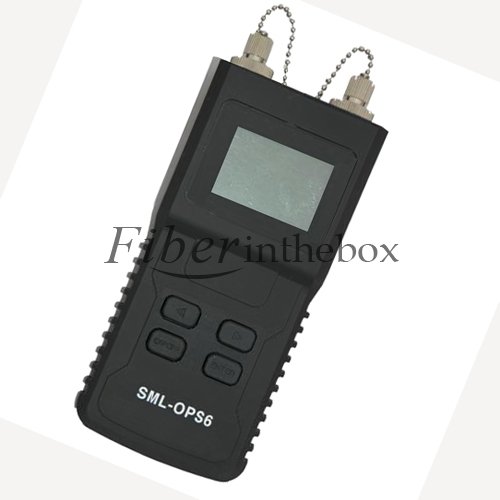

SML-OPS6 Optical Power Meter and Fiber Scanner

SML-OPS6 Optical Power Meter and Fiber Scanner can provide a fire-new calibration function for user. It has many features that other common this kinds of products do not own, you can find its characteristic in the below. It plays an impo ant role in the fiber troubleshoot area.



1). This meter provide a fire-new calibration function for user.
2).designed with a precision measurement of multi-wave brand and a fast seed.
3).With a function of logarithm power measurement (dBm) and linear power measurement (nw).
4).With a function of relative power measurement.
5).Can store 255 sets of test data.
6).With an indication function of low level voltage.
7).With an adjustable feature for the time of automatic shutdown, system gives a default time of 3 minutes for automatic shutdown.
8).With an adjustable feature for the time of light of LCD, system gives a default time of 3 minutes for lighting.
9).With a design of ergonomic handhold and liquid crystal display ( LCD) of graphic dot-matrix.
10).Clock function, displays the current time and provide a time record for the stored data. The clock time can by adjusted by both clicking the keys and the software itself to carry on “ time synchronism”.
11).The unique design of all-purpose po provide the FC/SC/ST po and so on to run with a universal function, and need no a complex transform.
12).Designed with two type of built in laser sources which are 1310nm and 1550nm.



Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For this Optical Power Meter and Fiber Scanner, it plays an impo ant role in fiber testing. And we will give you a special discount if you need this SML-OPS6 Optical Power Meter and Fiber Scanner at a large quantity.

LCD	LCD 128x64mm (valid scope 48x32mm)
Working environment temperature	-10°C— +60°C
Working environment humidity	<75%
Measurable wave length scope	800nm—1600nm
Probe type	InGaAs
Error range	±5%
standard wave length(nm)	850,980,1300,1310,1490,1550
Display resolution	Linear display 0.1%,logarithm display 0.01dBm
default power off time	3 minutes, the meter will shut off automatically to save power if not work for 3 minutes
Default light time	10 second, the meter will shut off light automatically to save power if not work for 10 second
Battery type	3 piece of 1.5V AA battery
Under voltage instruction
Measure range	-50 — +26dBm
Measure Sensitivity	0.01nw
