Features

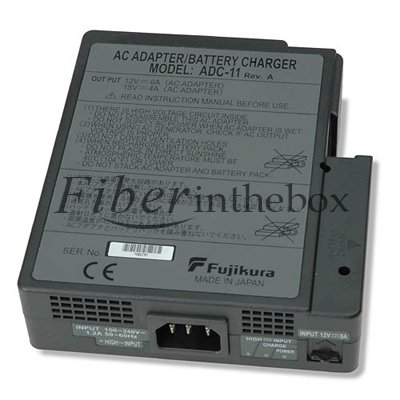

The ADC-11 supplies required DC power exclusively for Fujikura Fusion Splicers.
Three functions are available on it, as AC adapter, battery charger and external DC power inlet.
The ADC-11 is supplied with Fusion Splicer, FSM-50 series, FSM-17 series, as a standard item.
Specification
| Kind of power inlet | AC, External DC and battery charging | |
| AC power supply | Input | 100V to 240V AC, 50Ha to 60Hz |
| Power Cord | Fujikura's AC power cords: ACC-01~07 | |
| Bar ey charging | Battery/Capacity | Fujikura's battery pack: BTR-06(S)/ 4.5Ah, BTR-06(L)/9.0Ah |
| Charging voltage | 13.2V | |
| Battery charge cord | Fujikura's battery charge cord:DCC-10 | |
| External DC power supply | Input | 10V to 15V DC |
| Power Cord | Fujikura's DC power cords: DCC-12 (Cigarette lighter plug), DCC-13 (alligator clamps) | |
| Power supply selection | Automatic | |
| High voltage protection circuit | Available (High input indicator equipped). Worked at 350V AC (or Peak 490V) or 16V DC | |
| Use for | FSM-50S, FSM-50R, FSM-17S, FSM-17S-FH, FSM-17R | |
| Usage | Power supply: Sloted into the above splicers | |
| Battery charging: Connecting to the battery | ||
| Dimensions and Weight | 150W*130D*39H (mm), 0.5kg | |
