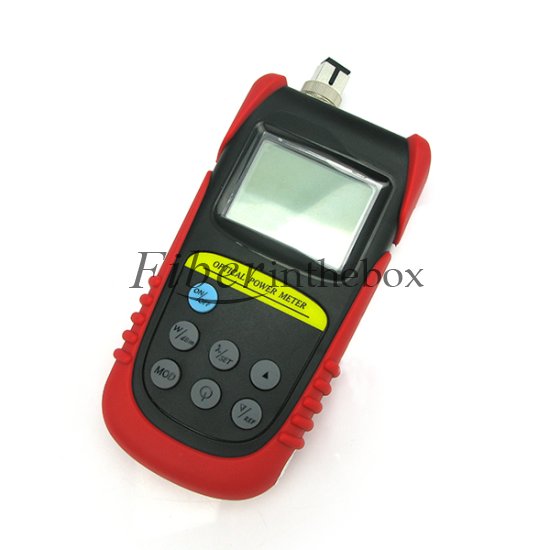

Optical Power Meter FS6070B (-50~+26dBm)

Power Meter FS6070 series with a chip microcomputer control and the large-screen graphics LCD, it can provide precision measurement from 850 to 1625nm wavelength ranges and measuring range including -70dBm to +6dBm, -50dBm to +26dBm.
The FS6070B power meter can test the PM power to the light, light stability, inse ion loss, optical transmittance, reflectance of light and so on. It widely used in optical fiber communications, Telecom, Fiber Optical Sensors etc. It is indispensable for scientific research and engineering construction.



Self-calibration function
High performance impo laser detector
High sensitivity and large dynamic range
0.01dBm precision
Automatically conve ed Range
Small size, light weight, high reliability
Battery-powered, convenient field work
Line display or relative loss displayed



Fiber optic production and research
Testing and maintenance of fiber-optic network
Teaching and testing in optical communication



FS6070B Optical Power Meter, Operation Manual, Product Warranty Cards, Ce ificate, Desiccant, Po able Bag



We provide FC, ST, SC Connector for choose. If no special requirement, we will send you the FC connector.
If you need more than one connector, the price would be different, please contact our sales at sales@fiberinthebox.com for more details.



Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new Optical Power Meter FS6070 (-70~+6dBm) at a large quantity.

Type	FS6070	FS6070B
Detector	InGaAs	Fitered InGaAs
Wavelength Range (nm)	850,1300,1310,1490,1550,1625	850,1300,1310,1490,1550,1625
Power Measurement range(dBm)	-70~+6	-50~+26
Uncertainty	+5%
Resolution Ratio	0.01dBm
Power Supply	2 AA1.5V Batteries or (Chargeable battery)

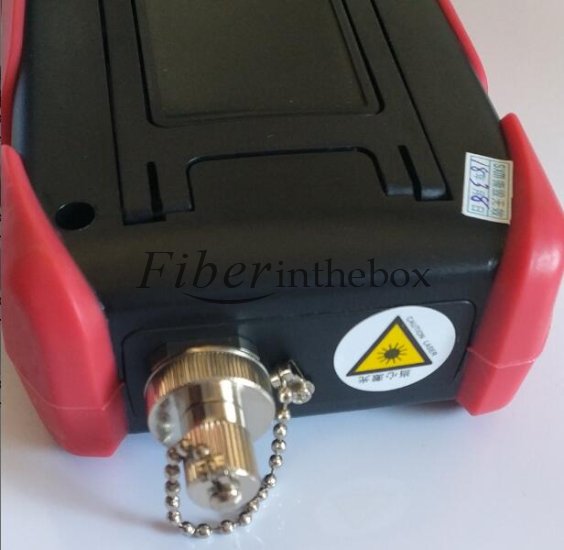

Optical Connector	FC-type adapter (SC,ST is optional)
Operating Temperature	-10°C to 60°C
Storage Temperature	-20°C to 70°C
Work Humidity	<95%
APO	10min
Dimensions	16.5×8.0×3.5cm
Weight(g)	280g


(1) Wavelength range: the provision of a standard operating wavelength is from λmin to λmax. The power meter designed in this kind of wavelength range can work in target.
(2) Power Measurement range: can test the maximum optical power range according to the provisions of indicators.
(3) Uncertainty: the error between the test results of certain optical-power and the test results of standard optical-power.
