Features
Color LCD monitor & 256 magnification
Compact & Light weight
Reversible monitor with control panel on each side
Max. wind velocity of 15m/s.
8 Sec. splice time, 40 Sec. tube-heat time
Simultaneous X and Y views
Large capacity internal battery
SYSTEM TEST ensures the best working condition
User programmable
Auto check fiber end face
Auto calibrate parameters
Store 8000 groups of splice results
Multiple language options
Standard Package
Fusion Splicer, AC adapter, Cooling tray, Manual instruction, AC power cord, Internal battery, Carry case, Fiber cleaver, Charger, Spare electrode, Fiber stripper
Fiber Optic Fusion splicer is a must in the process of properly joining two bare optical fibers together. For this kind of fine workmanship product, we Fiberinthebox.com provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of the DVP-730 Single Fiber Fusion Splicer, please feel free to contact us. We will try our best to provide you the best service.

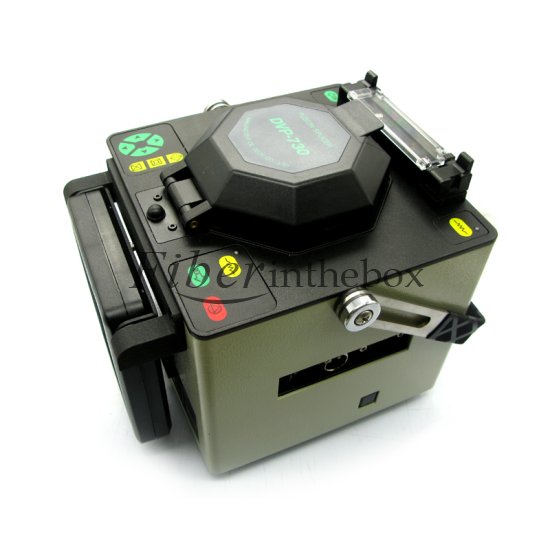

Picture Details
Specifications
Applicable fibers |
SM, MM, DS,NZ-DS, EDF
|
|
Cladding diameter
|
100 to 150um
|
|
Coating diameter
|
100 to 1000um
|
|
Fiber cleaved length
|
8-22mm (standard)
|
|
Splicing mode
|
Auto & Manual
|
|
Average splice loss
|
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
|
|
Return loss
|
≥ 60dB
|
|
Environment conditions
|
-25°C~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
|
|
Storage environment
|
-40°C~+80°C(temperature) , 0~95%RH (humidity)
|
|
Protection sleeve length
|
20mm, 40mm, 60mm
|
|
Tension test
|
2.0N (Standard)
|
|
Language
|
English, Chinese, Korea, Russian,Spanish etc.
|
|
Interface
|
RS232 interface & video output
|
|
Power supply
|
AC adaptor: 85~260V input voltage
|
|
Internal battery: 12V voltage, 10Ah, up to 200 times of continuous splices and heats
|
|
DC adaptor: 12V voltage, optional multipurpose external battery
|
|
Dimensions
|
170(W)×140(H)×170(D) mm
|
|
Weight
|
3.3kg
|
Applicable fibers |
SM, MM, DS,NZ-DS, EDF
|
|
Cladding diameter
|
100 to 150um
|
|
Coating diameter
|
100 to 1000um
|
|
Fiber cleaved length
|
8-22mm (standard)
|
|
Splicing mode
|
Auto & Manual
|
|
Average splice loss
|
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
|
|
Return loss
|
≥ 60dB
|
|
Environment conditions
|
-25°C~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
|
|
Storage environment
|
-40°C~+80°C(temperature) , 0~95%RH (humidity)
|
|
Protection sleeve length
|
20mm, 40mm, 60mm
|
|
Tension test
|
2.0N (Standard)
|
|
Language
|
English, Chinese, Korea, Russian,Spanish etc.
|
|
Interface
|
RS232 interface & video output
|
|
Power supply
|
AC adaptor: 85~260V input voltage
|
|
Internal battery: 12V voltage, 10Ah, up to 200 times of continuous splices and heats
|
|
DC adaptor: 12V voltage, optional multipurpose external battery
|
|
Dimensions
|
170(W)×140(H)×170(D) mm
|
|
Weight
|
3.3kg
|
