Features
High-definition LCD display
PAS Technology
Core or Cladding alignment
Double Heaters, 30 sec. Tube-heat time
3 Magnification modes, max. 360 magnification
4 Display modes, Fiber core visible
8 sec. splice time
Lithium battery
Max. wind velocity of 15m/s
Splicing method: Auto, Manual
Store 8000 groups of splice results
USB interface
Standrad Package
Main body, Internal Battery, Carry Case, Fiber Cleaver, Charger, Spare Electrodes, Fiber Stripper, AC Adaptor, Cooling Tray, Manual Instruction, AC Power Cord

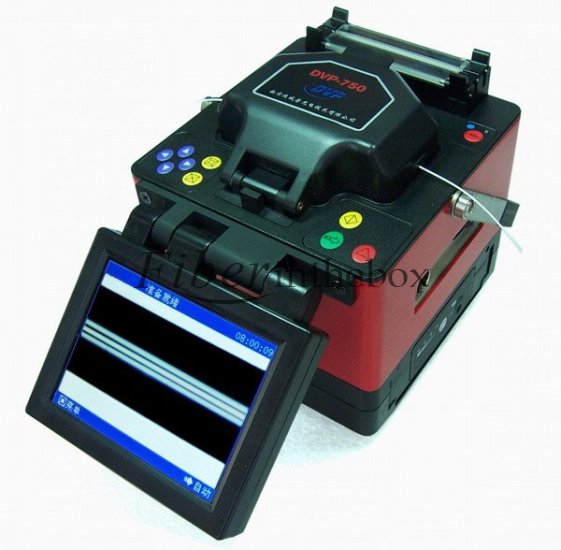

Fiber Optic Fusion splicer is a must in the process of properly joining two bare optical fibers together. For this kind of fine workmanship product, we Fiberinthebox.com provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of the DVP-750 Digital Single Fiber Optic Fusion Splicer, please feel free to contact us. We will try our best to provide you the best service.
Specifications
Applicable fibers |
SM, MM, NZ-DS(G655), EDF and others
|
|
Average splice loss
|
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS)
|
|
Return loss
|
≥60dB
|
|
Tension test
|
2.0N (200gf) (Standard)
|
|
Protection sleeve length
|
20mm, 40mm, 60mm and other series micro protection sleeves
|
|
Splicing program
|
80 groups
|
|
Language
|
English, Chinese, Korean, Russian, Spanish , French, German,
Portuguese and others
|
|
Environment conditions
|
-25°C+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
|
|
Storage environment
|
-40°C~ +80°C (temperature) , 0~95% RH (humidity)
|
|
Power supply
|
AC adaptor: 85~260V input voltage
Internal battery: 12V,8Ah, up to 180 times of continuous splice and heat
|
|
Dimensions/Weight
|
140(D)×150(W)×160(H)mm/2.8kg
|
Applicable fibers |
SM, MM, NZ-DS(G655), EDF and others
|
|
Average splice loss
|
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS)
|
|
Return loss
|
≥60dB
|
|
Tension test
|
2.0N (200gf) (Standard)
|
|
Protection sleeve length
|
20mm, 40mm, 60mm and other series micro protection sleeves
|
|
Splicing program
|
80 groups
|
|
Language
|
English, Chinese, Korean, Russian, Spanish , French, German,
Portuguese and others
|
|
Environment conditions
|
-25°C+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
|
|
Storage environment
|
-40°C~ +80°C (temperature) , 0~95% RH (humidity)
|
|
Power supply
|
AC adaptor: 85~260V input voltage
Internal battery: 12V,8Ah, up to 180 times of continuous splice and heat
|
|
Dimensions/Weight
|
140(D)×150(W)×160(H)mm/2.8kg
|
