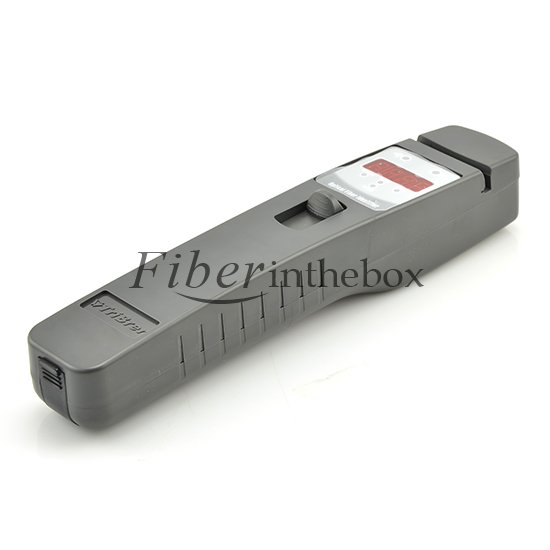

New High Performance Optical Fiber Identifier AFI420L

SKU#:FITB47459GFX
Model#: AFI-420L
Price: US$ 257.45
Sold: 1757
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
The AFI420L is a kind of high quality optical fiber identifier which can indicate the signl direction in fiber without disrupting traffic, and it is suitable for dia.0.25mm/0.9mm/3.0mm fiber, and no need to replace the clamp block, more convenient than others, and it also with 1 mW visual fault locator.



Features
• Suppo to detect optical signals without disrupting traffic
• Based on non-destructive technology
• Indicate the signal direction in fiber
• Detect a variety of optical tones, 270Hz, 1kHz and 2kHz
• Suitable for 0.25mm, 0.9mm, 3.0mm fiber, and no need to replace the clamp block, more convenient than others
• Build in visible fault locator 1mW or 10mW optional;
• Battery low indication;
• Powered by 2 units of 1.5V AA alkaline batteries;
• One year guarantee



Standard Package
Optical fiber identifier AFI420L, User’s manual, Calibration ce ification, Carrying case



Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For this optical fiber identifier, we provide one year warranty for that. If you have any problems or special requirement or want to buy this high performance optical fiber identifier AFI420L at a large quantity, please feel free to contact us. We will try our best to provide you the best service.

Specifications



AFI 400

AFI420S

AFI420L

Wavelength Range

900 to 1700nm (SM)

Recognizable signal type

CW, 2kHz, 1kHz, 270Hz +/- 10%

Detector Type

InGaAs 2pcs

Fiber Type

0.9, 0.25, 3.0 mm fiber

Sensitivity

1310nm

+10dB to -20dBm(Continuous Wave)

+10dB to -15dBm (Modulated Signal)

1550nm

 +10dB to -30dBm(Continuous Wave)

+10dB to -25dBm (Modulated Signal)



LED Indicator

Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery

Visual Fault Locator

No

1mW

10mW

Storage Temperature

-20 -- +60 °C, < 90%RH

Operating Temperature

-10 -- +50 °C, < 90%RH

Power Supply

AA * 2

* at 20±3℃, 0.9mm fiber, with white coat
