Introduction

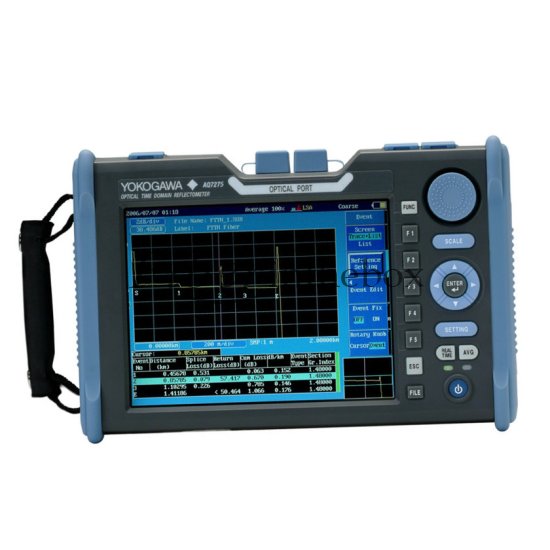

The AQ7275 is one of the best selling OTDRs in the world. Model lineup has been expanded to a total of 9 models to choose from with a dynamic range of up to 45dB . Wavelength capability spans from 850nm (MMF) to 1650nm (SMF). An impressive 0.8m event dead zone makes this model an excellent choice for FTTH and metro, core networks.
Enhancements include a PON option allowing accurate event analysis after a 1x32 splitter with significantly reduced undershoot effects. Also unique to the industry is a built-in section of launch fiber to eliminate the need for a separate launch box.
Latest standard features includes the convenient capability to display a fiber connector inspection probe using one of the unit's standard USB I/O po s.
Features
Wide Range of Modules Available
Enhanced suppo of FTTH to Metro, Core Network
High Dynamic Range (45dB)
Sho Dead Zone (0.8 m)
Optional built in Dummy Fiber
Enhanced suppo of FTTH to Metro, Core Network
High Dynamic Range (45dB)
Sho Dead Zone (0.8 m)
Optional built in Dummy Fiber
Applications
Stabilized Light Source
Visible Light Source
Built-in Dummy Fiber
Optical Power Monitor
Angled-PC Connector
Printer/LAN
Visible Light Source
Built-in Dummy Fiber
Optical Power Monitor
Angled-PC Connector
Printer/LAN
Meets a broad range of measurement needs from FTTH to Metro, Core network.
Family Comparison
| Model | 735032 | 735033 |
| Wavelength *1 | 1310/1550±25 nm | |
| Applicable fiber | SM (ITU-T G.652) | |
| Distance range | 500m, 1km, 2km, 5km, 10km, 20km, 50km, 100km, 200km, 300km, 400km, 512km | |
| Pulse width *2 | 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1µs, 2µs, 5µs, 10µs, 20µs | |
| Dynamic range (typ) | 34/32 dB *4 | 40/38 *4 |
| Event dead zone (typ) *3 | 0.75 m *5 | |
| Attenuation dead zone (typ)*3 | 7/8 m *6 | |
| Descriptions | Standard model for installation and maintenance of FTTH | Standard model for installation and maintenance of Metro and Access network |
*1 Pulse width of 1 µs
*2 Pulse width setting range depends on the distance range
*3 Pulse light output power at 1625 nm and 1650nm, 15dBm or less, built-in 1310/1550nm cut filter
*4 SNR:1, pulse width: 20 µs, distance range: 200 km, sampling resolution: 8 m, measurement time: 3 minutes. When built-in dummy fi ber and angled-PC connector are used, each dynamic range
decreases by 0.5 dB. Guaranty value [dB]; 30 (735031), 34/32 (735032), 40/38 (735033), 43/41 (735034), 34/30/32 (735035), 40/38/33 (735036), 40/38/30 (735037), 40/38/36 (735038), [SM]
40/38 [GI50/125] 21.5/23 [GI62.5/125] 22.5/24 (735041)
*5 Pulse width of 3 ns, return loss of 45 dB or more at a point 1.5 dB below the peak value (not saturated). Guaranty value is 0.8m
*6 Pulse width of 10 ns and return loss of 45 dB or more at a point where the backscatter level is within ±0.5 dB of the normal value
Note: Specifi cations without any special remarks are assured at 23°C±2°C
Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this YOKOGAWA AQ7275 OTDR 40/38dB 1310/1550nm, please feel free to contact us. We will try our best to provide you the best service.
Specifications
| Common | |
| Horizontal Axis Parameters | |
| Sampling resolution | 5 cm, 10 cm, 20 cm, 50 cm, 1 m, 2 m, 4 m, 8 m, 16 m, 32 m |
| Readout resolution | 1 cm (Min.) |
| Number of sampled data | Up to 50,000 points |
| Group refractive index | 1.30000 to 1.79999 (in 0.00001 steps) |
| Unit of distance | km, kf, or miles |
| Distance measurement accuracy | Sum of the following 3 errors |
| Offset error: ±1 m | |
| Scale error: Measurement distance × 2 ×10-5 | |
| Sampling error: ±1 sampling resolution | |
| Excluding IOR uncertainty | |
| Vertical Axis Parameters | |
| Vertical axis scale | 0.2 dB/div, 0.5 dB/div, 1 dB/div,2 dB/div, 5 dB/div, 7.5 dB/div |
| Readout resolution | 0.001 dB (Min.) |
| Loss measurement accuracy | ±0.05 dB/dB |
| * When the measuring loss is 1dB or less, the accuracy is within ±0.05dB | |
| OTDR Measurement Function | |
| Distance measurement | Displays up to eight digits of the relative one-way distance between two arbitrary points on the trace |
| Loss measurement | Displays one-way loss in steps o, f 0.001 dB to a maximum of 5 digits. Displays the one-way loss, loss per unit length, and splice loss between any two given points on the waveform |
| Return loss measurement | Measures return loss and total return loss of a fiber cable or between |
| Scheduling function | Performs measurements and saves results onto a USD storage in a user defined frame and interval automatically. |
| OTDR Analysis Functions | |
| Analysis functions | Multi trace analysis, 2 way trace analysis, differential trace analysis, section analysis |
| Internal Memory | |
| Memory capacity | 1000 waveforms or more |
| Can store measured waveforms, and measurement conditions | |
| Display | |
| Display | 8.4-inch color TFT LCD |
| Total number of pixels | 640 (horizontal) * 480 (vertical) |
| * The LCD may contain some pixels that are always ON or OFF (0.002% or fewer of all displayed pixels including RGB,) but this is not indicative of a general malfunction. | |
| External Interface | |
| USB | USB1.1 Type A and Type B, one each |
| Type A: For external memory or external printer | |
|
Type B: For connecting to an externall PC for remote control or access to the OTDR's internal memory |
|
| File formats | Read: SOR, TRD, TRB, SET (AQ7270/75) |
| Write: SOR (Telcordia), SET, CSV, BMP, JPG, PNG | |
| General : | |
| Laser safety standards | Class 1 M (IEC60825-1:1993+A2:2001) |
| Safety standard | EN61010-1 |
| Emission | EN61326-1 Class A |
| EN55011 Class A Group 1 | |
| Immunity | EN61326-1 Table 2 |
| Operating environment | Temperature 0 to 45°C (0 to 35°C when charging the battery) |
| Humidity 85% RH or less(no condensation) | |
| Humidity | 85% RH or less (no condensation) |
| Storage temperature | -20 to 60°C |
| Battery | Operation time 6 hours(18 hours with external large capacity battery) |
| Recharge time 5 hours *2 | |
| Rated supply voltage | 100 to 240 VAC |
| Rated supply frequency | 50 to 60 Hz |
| Power consumption | Max 70 W (when battery charging, and optional printer) |
| Dimensions | (W) 287 * (H) 197 * (D) 85 mm (excluding projections or options) |
| Weight | Approx. 2.8 kg (exincluding options) |
