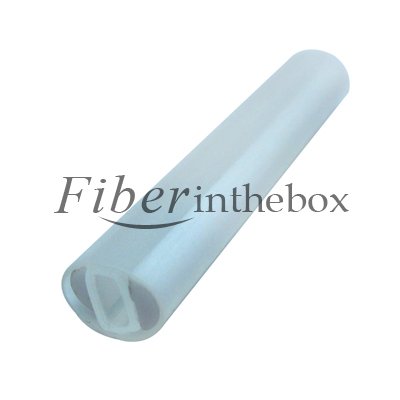

Ribbon Fiber Fusion Splice Protection Sleeves with Ceramic Rod-12 fibers (FITB-4212)

SKU#:FITB29437MIR
Model#: FITB-4212
Price: US$ 8.55
Sold: 4522
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
This products is made up of cross linked polyolefin heat-shrinkable tubes, hot melt tubes and ceramic needle, It is specifically designed for the protection of optical fiberal closure.

Features
Protect connection point, improve the mechanical strength, it is most reliable way to protect the fusion.
Easy to operate, reducing the risk of fiber damage during installation
Transparent tube, it is easy to see the status of optical fiberal closure
Min. shrinks temperature: 120°C, shrink very fast and very easy to installation
Work temperature high (-55°C~100°C), widely used
Sealing structure let closure have good resistance to temperature and humidity performance

Ordering Information
Type Length of tube Hot-melt tube Ceramic stick
Wide High
FS-4206 42 2.9 2.9 1.65
FS-4212 42 4.1 4.1 2.1

Quantity: 50pcs/pkg
Note: We also provide this kind of protection sleeves with 1000pcs/pkg and good price. Welcome contact us.
FS-4212: Ribbon Fiber Fusion Splice Protection Sleeves with Ceramic Rod-12 fibers.

Fiber optic splice protection sleeves are used for optical fiber fusion protection, it can protecting and suppo ing the fusion splice point. Fiberinthebox.com now provides different sizes and materials of this kind of products. If you can not find the optical fiber splice sleeves you needing on our website, welcome to contact us, we will give you a reasonable suggestion. And if you want the Ribbon Fiber Fusion Splice Protection Sleeves with Ceramic Rod-6 fibers in a large quantity, we will provide you a special discount.
Specifications

Item

Test method

Performance

Temperature

IEC216

-55°C~100°C

Tensile strength

ASTM D 2671

18MPa

Elongation at break

ASTM D 2671

700%

Density

ISO R1183D

0.94g/cm3

Dielectric strength

IEC243

25kV/mm

Volume resistance

IEC243

1015Ω

Dielectric constant

IEC243

2.5

Longitudinal change

ASTM D 2671

±5%

Eccentricity

ASTM D 2671

105
