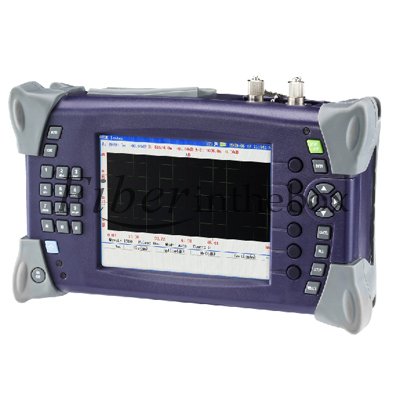

FITB-5000 OTDR (28/26 dB)

SKU#:FITB23345PYK
Model#: FITB-5000
Out of stock

Description
FS-X000 OTDR series handheld optical time domain reflectometry (OTDR) is the latest FTTx optical fiber cable-based test instruments. Integrated machining, elegant appearance, splash design, small size, light weight, durable. Built-in three test wavelengths and visual fault locator (VFL) function is tailored FTTx network testing a new product.

Specification


Model

FS-2000

FS-4000

FS-5000

wavelength

1310nm/1550nm
+20nm

1310nm/1550nm
+20nm

1550nm/1625nm
+20nm

Fiber Type

Single-Mode Fiber

Single-Mode Fiber

Single-Mode Fiber

Dynamic Range

15/13dB

28/26dB

28/26dB

Accuracy

+1m+ Sampling interval +0.003% Distance)( not include Refractive index into error)

Event dead zone

1.6m

Resolution

0.1m-16m

Range (Single-Mode Fiber)

1.6m/0.1m-16m

Pulse width (Single-Mode Fiber)

1.6km~80km/10ns~10240ns

Loss Threshold

0.01Db

Sampling Points

65K

Linearity

0.05dB/dB

Waveform storage

800

Refractive index setting range

1.00000~2.00000

Display

Color TFT LCD 5.1 inch 648*480 (Optional touch screen operation)
Optional touch screen operation

Interface

USB

Optical output interface

FC/UPC(Standard, optional universal connector)

Power supply

AC/DC Adapter, Voltage, 100V~240V(1.5A)
Frequency :50Hz
DC 15V~20V(2A)
Li battery 7.4V 3200mAh
Battery last 10 hours(Normal temperature)

Language

English

Environment

Work temperature:0℃~40℃(recharge:5℃~40℃)
Storage temperature:-40℃~70℃(not include battery)
Humidity:5%~95%

Size

215*130mm*66mm/1000g

Weight

1kg

Note: This price is only for FS-5000 OTDR.

Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the FS-5000 OTDR (28/26 dB), we provide one year warranty for it. If you have any problems or special requirement of this OTDR, please feel free to contact us. We will try our best to provide you the best service.
