Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.
Fiberinthebox.COM provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.

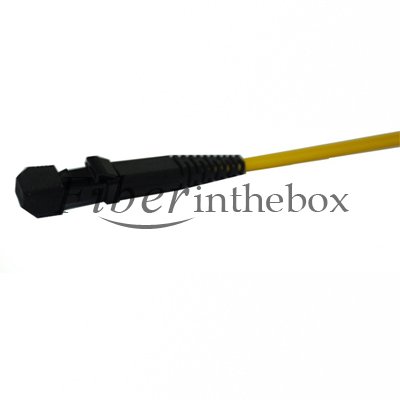

MTRJ fiber pigtails include the single mode types and multimode types, MTRJ use a plastic ferrule instead of ceramic, and there are no APC MTRJ connectors. There are female MTRJ and male MTRJ types, the difference is male type are with two pins in the connector. MTRJ optical fiber connector is used in density connections and it is born to use with duplex cables.
|
Items |
Singlemode |
Multimode |
|
Inse ion Loss |
≤0.3dB |
≤0.3dB |
|
Return Loss |
≥45dB |
|
|
Repeatability |
≤0.1dB |
|
|
Durability |
≤0.2dB typical,1000 matings |
|
|
Operating Temperature |
-40℃～+85℃ |
|
Technical Test Date
|
Test item |
Test condition |
|
Wet-resistance |
Temperature:85℃/relative humidity 85%/14days/inse ion loss≤0.1dB |
|
Temperature change |
Temperature:-40℃～+75℃/relative humidity 10%-80%/42 repetitons/14days/inse ion loss≤0.1dB |
|
Water resistance |
Temperature:43℃/PH5.5/7days/inse ion loss ≤0.1dB |
|
Vibrancy |
Swing 1.52mm/frequency 10Hz~55Hz/X、Y、Z threee direction:2 hours/ inse ion loss≤0.1dB |
|
Load bend |
0.454kg load/100 circles inse ion loss ≤0.1dB |
|
Load torsion |
0.454kg load/10 circles inse ion loss ≤0.1dB |
|
Tensility resistance |
0.23kg pull(nakedness fiber),1.0kg(with shell) inse ion loss ≤0.1dB |
|
Strike |
High 1.8m,three directions,8 in each direction/inse ion loss ≤0.1dB |
|
Reference standard |
Bellcore TA-NWT-001209 inse ion loss ≤0.1dB |
