Figure 8 Self-suppo ing Cable GYXTC8Y

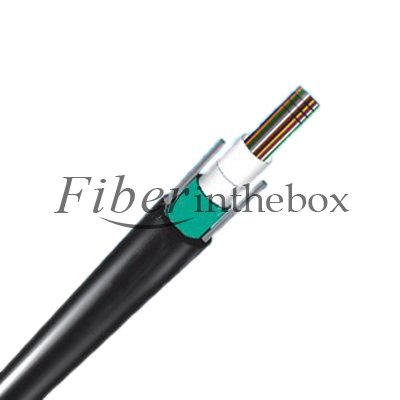

Fiberinthebox Fiber optic cable GYXTC8Y, 2~24 fibers, jelly filled, fiber contained central loose tube, armored by a layer of copolymer coated steel wire, water blocking tape, PE outer sheath, figure 8 type, the suspension line (1.2x3=3.6mm), 7 steel wires stranded together. G652D SM fiber, detailed specification on your request.
Features
Low dispersion and attenuation.
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental prope ies.
The armoring of corrugate steel tape make cable have nice prope ies of moisture resistance and crush resistance.
Compact structure and lightness, flexible and good bend-resistant performance.
With small cable diameter, light cable weight, self-suppo ing.
Cable Structure
.jpg)
Structure of the cable package
Our Factory
-
Fiber Coating -
Gel Filling -
SZ Strand -
Sheath cover -
Production Line -
Warehouse
Cable production throughout the cha
Specifications
| Optical Characteristics | ||||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber | ||
| A1b:62.5/125 | ||||||
| Single-mode | G.652(A、B、C） | B1.1:Conventional fiber | ||||
| G.652D | B2: Zero dispersion shifted | |||||
| G.655 | B1.2 :Cut-off wavelength shifted | |||||
| G.657（A1、A2 、B3） |
B4: Main technical data for positive dispersion shifted single-mode fiber |
|||||
| Technical parameters | ||||||||||
| Cable Count |
Out sheath Diameter |
Weight |
Minimum allowable Tensile Strength (N) |
Minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | ||
| 2 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 | |
| 4 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 | |
| 6 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 | |
| 8 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 | |
| 12 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 | |
| 24 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 | |
