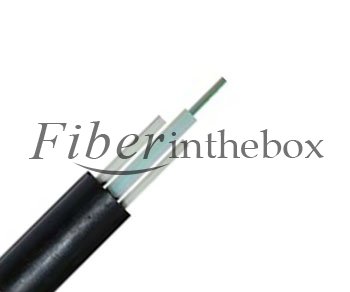

Non-metal Central Loose Tube Outdoor Cable GYFXTY
Fiberinthebox GYFXTY fiber cable is positioned in a loose tube, which is made of high modulus plastic. The tube are filled with a water-resistant filling compound and covered with a layer of aramid yarn as strength member .The cable is completed with a LSZH (LSZH, Low smoke ,Zore halogen, Flame-retardant) material Jacket.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Crush resistant and flexibility
Aramid yarn strength member ensure tensile strength
Small diameter,light weight and friendly installation
Filler protect loose tube fiber
Non-metal strength has an excellent anti-electromagnet ability.
Cable Structure
.jpg)
Structure of the cable package
Our Factory
-
Fiber Coating -
Gel Filling -
SZ Strand -
Sheath cover -
Production Line -
Warehouse
Cable production throughout the cha
Specifications
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted | |||
| Technical Parameters | |||||||||
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable Tensile Strength(N) | Minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) |
Storage temperature |
|||
| short term | long term | short term | long term | short term | long term | (℃) | |||
| 2 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 6 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 8 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 12 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
