Precision V-Groove Fiber Aligner AV87501

SKU#:FITB03634JTJ
Model#: AV87501
Price: US$ 427.50
Sold: 4349
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description

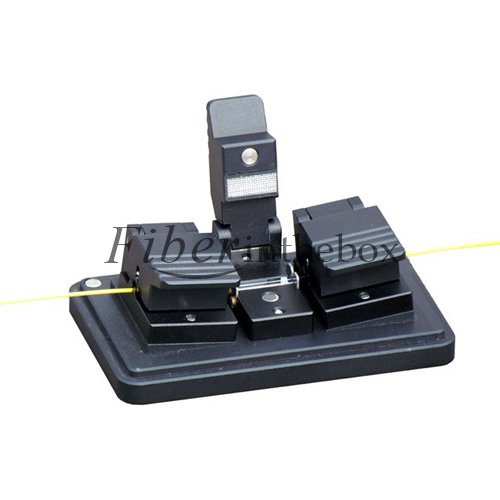

AV87501 Fiber Aligner is a precise V-slot fiber aligner. It is used to make a temporary fiber link that facilitates OTDR and Optical Power Meter measurement.
It has a light source and power meter-based loss measurement and bare fiber reel testing for confirming transmission capability.
Features
Typical loss of 0.5dB
Precision Alignment
Compact and light
Specification


Fiber Size

0.25 ~ 0.9mm, single fiber

Average Loss

0.5dB for SM

Fibers Types

SM, MM, DS, NZ-DS

Cleave Length

10mm



Operation Environments

Working Temperature

0°C to 40°C

Relative Humidity

90%RH(40°C, non-condensed)

Storage Temperature

-20°C~60°C



Dimensions

Main Body

D*W*H=80*50*30(mm3)

Case

D*W*H=210*140*60(mm3)



Net Weight

Main Body

Approx.0.26kg

Case

Approx.0.38kg



This V-slot fiber aligner is used to make a temporary fiber link that facilitates OTDR and Optical Power Meter measurement, which has a light source and power meter-based loss measurement and bare fiber reel testing for confirming transmission capability. Welcome to contact us if you have any questions of this Precision V-Groove Fiber Aligner AV87501, we will provide you the best service.
