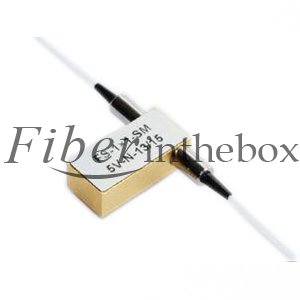

1x1 Mechanical Fiber Optic Switches/1x1 Optical Switch,Non-Latching,Single-mode
Fiberinthebox 1x1 Non-Latching Optical Switch is designed for use in optical fiber communication networks and measurement instruments. The switch consists of two po s that selectively transmits, redirects, or blocks optical power in a optical fiber transmission line. The optical switch must be actuated to select or change between two states. 1x1 Mechanical Fiber Optic Switches can make the light patch broken, usually used in blocking the optical transmission.

Fiberinthebox offers cost-effective standards-based 1x1 Non-Latching Mechanical Fiber Optic Switches. As a 3rd pa y OEM manufacturer, our 1x1 Non-Latching Mechanical Fiber Optic Switches is delivered to worldwide from our factory directly. All our 1x1 Non-Latching Mechanical Fiber Optic Switches are based on thin film filter technology and metal bonding micro optics packaging and our 1x1 Non-Latching Mechanical Fiber Optic Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. For more information about 1x1 Non-Latching Mechanical Fiber Optic Switches, please contact us at sales@fiberinthebox.com .
Features
Low Inse ion Loss Wide Wavelength Range Low Crosstalk High Stability, High Reliability Epoxy-free on Optical Path Latching and Non-latching
Applications
Metropolitan Area Network R&D in Laboratory System Monitor Configurable OADM Component testing Fiber sensor
Specifications

Parameters



FS-1 × 1 optical switch

Wavelength Range

nm

670~980

1260~1650

Operating Wavelength

nm

670/785/850/980

1310/1490/1550/1625/1650

Inse ion Loss

dB

Typ:0.8 Max:1.2

Typ:0.5 Max:0.8

Return Loss

dB

MM ≥ 30 SM ≥ 50

Crosstalk

dB

MM ≥ 30 SM ≥ 55

PDL

dB

≤ 0.05

WDL

dB

≤ 0.25

TDL

dB

≤ 0.25

Repeatability

dB

≤± 0.02

Power supply

v

3.0 or 5.0

Lifetime

times

≥ 10 7

Switch Time

ms

≤ 8

Transmission Power

mW

≤ 500

Operating Temperature

° C

-20~+70

Storage Temperature

° C

-40~+85

Weight

g

16

Dimension

mm

(L)27.0 × (W)12.6 × (H)8.0( ± 0.2mm)


Note:
1. All parameters are for device without connectors.
2.Special specifications can be customized according to customer requirements.

Optical Route:

Dimension:

Pins:
Type Pin Electri Drive Status Sensor
1×1   Pin1 Pin5 Pin6 Pin10 Pin2-3 Pin3-4 Pin7-8 Pin8-9
Latching P1-P2 V+ GND -- -- Open Close Close Open
Light close -- -- GND V+ Close Open Open Close
Non-latching P1-P2 V+ -- -- GND Open Close Close Open
Light close -- -- -- -- Close Open Open Close
Optical Route:
Specification Voltage Current Resistance
5V latching 4.5~5.5 36~44mA 125Ω
5V non-latching 4.5~5.5 26~32mA 175Ω
3V latching 2.7~3.3 54~66mA 50Ω
3V non-latching 2.7~3.3 39~47mA 70Ω
