Model |
JW3307B |
|
Optical Return Loss Test |
|
|
Wavelength(nm) |
850/1300 (50/125 or 62.5/125) |
|
Optical Connector |
FC/APC |
|
Return Loss measurement Range(dB) |
0 ~ 75 |
|
Calibrated wavelength(nm) |
850/1300 |
|
Output Stability of laser source(dB) |
0.05/hour@25℃ |
|
Measurement accuracy(dB) |
0.25dB |
|
Linearity(dB) |
0.05dB |
|
Optical Inse ion Loss Test |
|
|
Detector |
InGaAs |
|
Wavelength Range |
800~1700nm |
|
Calibrated wavelength |
850/1300/1310/1550nm |
|
Measurement range(dBm) |
-80~+3 |
|
Optic Connector(Power Meter) |
FC/SC/ST,2.5mm Universal /1.25mm adaptors |
|
Unce ainty(dB) |
0.25 |
|
Linearity(dB) |
0.05 |
|
Display modes |
Linearity and non-linearity |
|
Resolution |
Non-linear 0.01dB; Linear: 0.001nw/µW/mW |
|
Measurement accuracy |
0.01dB |
|
Other Specification |
|
|
Communication Po |
USB |
|
Power Supply |
AC 170-260V, 50~200Hz |
|
Operation Temperature(℃) |
-5~+55 |
|
Storage Temperature(℃) |
-25~+70 |
|
Dimensions(mm) |
280X260X120 |
|
Weight(kg) |
3.11 |
|
Model |
Includes |
|
JW3307B |
JW3307B Main Body, Power Supply Cable, FC Adapter, SC Adapter, ST Adapter, |

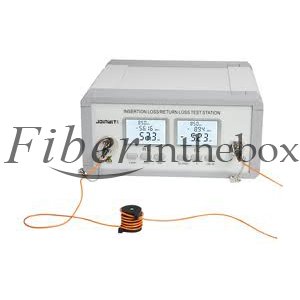

Fiberinthebox provides various types of optical fiber tools which are very impo ant in the optical fiber installation and maintenance works. There are fiber cable stripper, fiber cable slitter, crimping tool, optical fiber cutter, punch down tool, network pliers and so on. And we also provide some other optical fiber related tools, if you need or have some questions of this MM Return Loss & Inse ion Loss Test Station JW3307B, welcome to contact us for more details.
