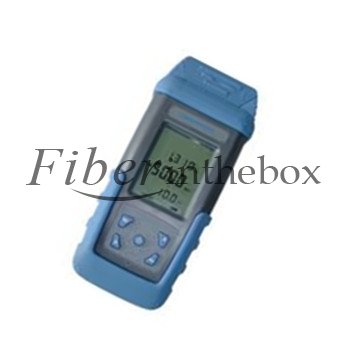

ST800K Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.
This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.
Absolute power measurement of dBm or xW
Relative power measurement of dB
Auto off function
270, 330, 1K, 2KHz frequency light identification and indication
Low voltage indication
Applicable to versatile adapters (FC, ST, SC, LC)
Handheld, large LCD backlight display, easy-to-use
| Model No. | Power test range（dBm） | Adapter interface |
| ST800K-A | -50～+26 | FC,ST,SC |
| ST800K-B | -50～+26 | FC,ST,SC,LC |
| ST800K-C | -70～+3 | FC,ST,SC |
| ST800K-D | -70～+3 | FC,ST,SC,LC |
Fiberinthebox is your reliable supplier of optical power meter, all the products are 100% tested before delivery. If you need this brand new ST800K-C Optical Power Meter (-70~+3dBm) at a large quantity, please feel free to contact us at sevice@Fiberinthebox.com, we will provide you the best service and a special discount.
| Wavelength range (nm) | 800~1700 |
| Detector type | InGaAs |
| Standard wavelength(nm) | 850, 1300, 1310, 1490, 1550, 1625 |
| Power testing range (dBm) | -50~+26 or -70～+3 |
| Uncertainty | ±5% |
| Resolution | Linearity: 0.1%, Logarithm: 0.01dBm |
| General specifications | |
| Connectors | FC, ST, SC or FC, ST, SC, LC |
| Working temperature (℃) | -10~+50 |
| Storage temperature (℃) | -30~+60 |
| Weight (g) | 430 (without batteries) |
| Dimension (mm) | 200×90×43 |
| Battery | 4 pcs AA batteries (lithium battery is optional) |
| Batteryworking duration(h) | No less than 150 (according to battery volume) |
| Auto power off time (min) | 10 |
