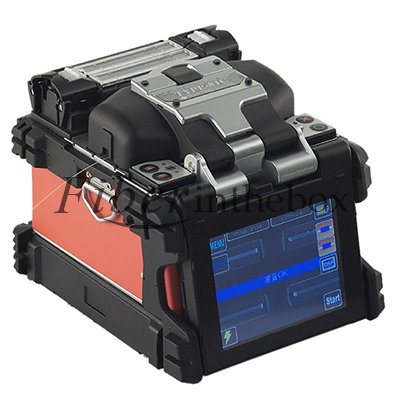

Features:
Ultra fast splicing in every environment
Compact, Lightweight and Ultra fast
Downsized by 43% from conventional model
2.1 kg weight with battery
Ultra fast splicing (7 sec.)
Ultra fast heating (28 sec.)
G.657 fiber auto-splice function
Durable & Rugged
IP52 rating and 76cm drop on 5 faces
Simple & Versatile
Touch-screen operation
Universal clamps for 250μm, 900m tight & loose buffer fiber (Patent Pending)
Suppo s bi-directional splicing operation/ Reversible coating clamps (Patent pending)
Remote suppo via internet
Upgrades software via internet
Remote interactive maintenance via internet
Standard Package
|
Pa name |
Pa No. |
Qty. |
|
Main unit |
TYPE-81C |
1pc |
|
Battery module |
BU-11 |
1pc |
|
Power supply module |
ADC-1430 |
1pc |
|
Power cord |
PC-AC |
1pc |
|
Fiber Cleaver |
FC-6S |
1pc |
|
Cooling tray |
-- |
1pc |
|
Carrying case with worktable |
CC-81 |
|
|
Spare electrode |
ER-10 |
1 pair |
|
Operating CD manual |
-- |
1pc |
|
Quick reference guide |
--- |
1pc |
|
Hand strap |
-- |
1pc |
Note: This excellent price being provided is because we now have many of these products in stock, the price may increase as time goes on. So it would be better to contact us before making the order.
Fiber Optic Fusion splicer is a must in the process of properly joining two bare optical fibers together. For this kind of fine workmanship product, we Fiberinthebox.com provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of the Sumitomo Type-81C Fusion Splicer, please feel free to contact us. We will try our best to provide you the best service.
| Product name | TYPE-81C | ||
| Optical Fiber Requirements | Material | Silica glass | |
| Profile types | SMF (ITU-T G.652), MMF (ITU-T G.651), | ||
| DSF (ITU-T G.653), NZDSF (ITU-T G.655), | |||
| BIF (ITU-T G.657), EDF | |||
| Fiber diameter | Cladding diameter: 80μm~150μm, | ||
| Coating diameter: 100μm~1,000μm | |||
| Applicable fiber | up to ø1,000μm | Drop cable (2.0×3.1mm) | |
| or cable size | Indoor cable (1.6×2.0mm) | ||
| Cleave length | 5~16mm | 10mm | |
| Standard Performance | Splice loss | SMF: 0.02dB, MMF: 0.01dB, | |
| (typical) *1 | DSF: 0.04dB, NZDSF: 0.04dB | ||
| Splicing cycle time | 7sec. (Quick mode), | ||
| 7.5sec. (SMF standard mode), | |||
| (typical) | 8sec. (Auto mode) | ||
| Heating cycle time | 28sec. | ||
| (typical) | |||
| Splice & Heat cycles *2 | Approx.200 | ||
| Fiber view | Two CMOS cameras observation | ||
| 320X (zoom:700X) for X or Y single axis view, | |||
| & magnification | 88X for both X & Y dual axis view | ||
| Programs | Splicing programs | Max.300 | |
| Heating programs | Max.100 | ||
| Functions | Loss estimation | Provided | |
| Splice image capture/ | 64 images/10,000 splice data | ||
| Splice data storage | |||
| Proof test | 1.96N (200gf) | ||
| Attenuation splicing | 0.1dB to 15dB in 0.1dB increments | ||
| Universal clamps | Provided | ||
| for 250μm, 900μm | |||
| tight & loose buffer fiber | |||
| Reversible coating clamps | Provided | ||
| Dual automatic | Provided (US patent 7,412,146) | ||
| independent heaters | |||
| User-selectable heater | Provided | ||
| clamp operation | |||
| Onboard user | Provided | ||
| training video | |||
| Automatic arc calibration | Automatically compensates for environmental condition changes | ||
| Arc test | Provided | ||
| Display of remaining | Provided (Battery mode) | ||
| Splice & Heat cycles | |||
| Remote interactive maintenance | Provided | ||
| Size/Weight | Size | 120(W)×154(D)×130(H)mm | |
| (without anti-shock rubber) | |||
| Weight | 1.8kg (without battery), | ||
| 2.1kg (with battery) | |||
| Monitor | 4.1" touch screen color LCD display | ||
| Terminals | DC output | DC12V (for JR-6) | |
| USB port | USB 2.0 (mini-Btype) | ||
| Storage media | SD/SDHC memory card | ||
| Power supply | AC input | 100~240V, 50/60Hz (ADC-1430) | |
| DC input | 10~15V | ||
| Battery module | Li-ion 11.1V, 4,600mAh (BU-11) | ||
| Operating condition | Altitude:0~6,000m, | ||
| Temperature: -10~+50℃, | |||
| Humidity: 0~95% (non-condensing), | |||
| Wind velocity up to 15m/s | |||
| Storage condition | Temperature: -40~+80℃, | ||
| Humidity: 0~95% (non-condensing), | |||
| Battery: -20~+30℃ (long term) | |||
| Electrode life | 3,000 arc discharges *3 | ||
| *1：When the fibers used are identical to Sumitomo's fibers. | |||
| *2：Splice & Heat cycles may vary depending on the battery status and the operating environment. | |||
| *3：Electrode life may vary depending on the operating environment. | |||
| Environmental Durability* | |||
| Shock resistance | Drop from 76cm on 5 faces (excluding top face) | ||
| Water resistance |
Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5min on each of 4surfaces tilted at 15º) |
||
| Dust resistance |
Equivalent to IP5x (Operates normally after 8hours in a dust chamber containing dust of particle size 25μm or below) |
||
| *Confirms the battery operation in tests carried out by Sumitomo. Does not guarantee that the product is free of faults or damage. | |||
