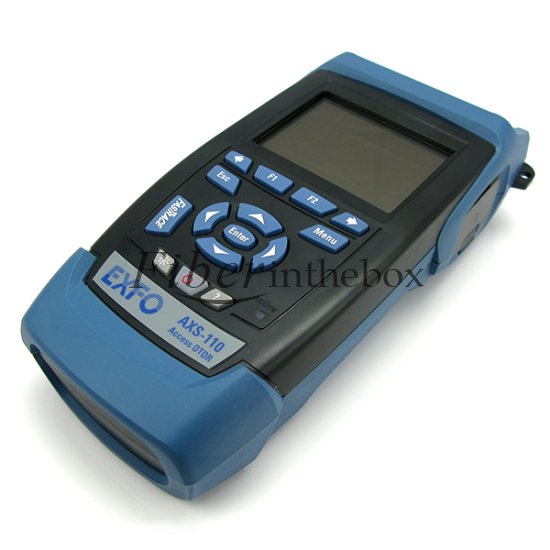

EXFO AXS-110-023B OTDR 1310/1550nm, 37/35dB

SKU#:FITB68114OWD
Model#: AXS-110-023B
Price: US$ 4,227.50
Sold: 2930
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Introduction
The handheld AXS-110 Access OTDR is specifically designed for the FTTx installer, and is also ideal for premise testing. User-friendly with one-touch testing, summary screen and macrobend identification. Complete connectivity flexibility using USB stick or RJ-45/USB cable data download.
Included is FastRepo er software with powerful batch processing, bi-directional analysis and live templating for OTDR testing. The AXS-110 Single mode OTDR is ideal for FTTx/access and CATV testing. The AXS-110 Multimode OTDR is optimized for enterprise testing.
Key Features and Benefits:
Event dead zone: 0.8 m
Wavelengths: 1310/1490/1550/1625/850/1300 nm
Dynamic range: up to 37 dB
Battery autonomy: 8 hour
Applications
FTTx/MDU PON network testing
LAN/WAN testing
Private network testing
Easy Location and Characterization of Events
EXFO's AXS-110 All-Fiber OTDR helps you boost test productivity for inside-plant applications. Its exceptional 0.8 m event dead zone enables you to easily locate and characterize all events between the transmitter and the central offices fiber, access and FTTH network applications, where events are usually closely spaced.
Multimode and Single Mode Flexibility
The AXS-110 combines single mode and multimode functionalities, ideal for premises, private and enterprise network testing. Test multimode fiber within premises, or single mode fiber between premises all with a single OTDR unit and maximize your return on investment.
End-to-End PON Characterization
The AXS-110 lets you test through high-po -count splitters even 1 x 64 splitters perfect for passive optical network (PON) testing, delivering these key advantages:

Perfect tool for FTTx contractors and tier-2 ce ification of premises networks
Pass/fail features that comply with industry standards such as TIA 568c and IEEE 802.3ah
Highest dynamic range of the industry for a handheld OTDR
Power meter option, for crosschecking the total loss using the built-in OTDR laser in continuous source mode
KeyFeatures
FasTrace function: one-touch testing for top user-friendliness
8-hour power autonomy
USB po (memory-stick compatible) for easy data transfer
Large internal memory (up to 500 results)
Transflective color display for viewing clear results under bright sunlight
Superior automated analysis for a better, easier and faster diagnosis
Automatic pass/fail analysis and macrobend locating
Ordering Information
AXS-110-12CD  EXFO AXS-110-12CD Multimode OTDR 850/1300nm, 24/25dB
AXS-110-023B EXFO AXS-110-023B OTDR 1310/1550nm, 32/30dB
AXS-110-23B-04B EXFO AXS-110-23B-04B OTDR 1310/1550nm/1625nm, 37/35/37dB
AXS-110-SM-MM EXFO AXS-110-SM-MM OTDR 850/1300/1310/1550nm, 24/25/32/30dB
Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this high quality EXFO AXS-110-12CD Multimode OTDR, please feel free to contact us. We will try our best to provide you the best service.

Picture Details




We also provide AXS-100 Single mode OTDR and AXS-110 All-Fiber OTDR, please contact us for more details.




  AXS-100 AXS-110
Wavelength (nm)  1310/1550/1625  850/1300/1310/1490/1550/1625
Dynamic range (*note b) (dB)   29/28/28 (1310/1550/1625) 24/25/37/33/35/37
Pulse width (ns)   10, 30, 100, 275, 1000, 2500, 10 000 Multimode: 5, 10, 30, 100, 275, 1000
Singlemode: 5, 10, 30, 100, 275, 1000, 2500, 10 000
Event dead zone (*note c) (m)  2.5 0.8
Attenuation dead zone (note c) (m)  11/12/12 3.5/4.5/4/4.5/4.5/4.5
Launch conditions (*note d )   Class CPR 1 or 2
Linearity (dB/dB)  ± 0.05  ± 0.03
Loss threshold (dB)  0.05 0.01
Loss resolution (dB) 0.01 0.01
Sampling resolution (m)  0.16 to 5  Multimode: 0.08 to 2.5
Singlemode: 0.08 to 5.0
Sampling points  Up to 30 000  Up to 64 000
Distance uncertainty (*note e) (m)   ± (1 + 0.005 % x distance + sampling resolution) ± (0.75 + 0.0025 % x distance + sampling resolution)
Distance range (km)  0.65 to 160  Multimode: 0.1 to 40
Singlemode: 0.65 to 260
Typical real-time refresh (Hz)  2 4
Memory capacity  500 traces  500 traces
Measurement time  User-defined  User-defined
Stable source output power f (dBm)  –9  Multimode: –1.5
Singlemode: -6.5
Visual fault locator (optional)  Laser, 650 nm ± 10 nm  Laser, 650 nm ± 10 nm
CW Typical Pout in 62.5/125 μm: 3 dBm (2 mW)  CW Typical Pout in 62.5/125 μm: 3 dBm (2 mW)
OPTIONAL POWER METER (note g)
Calibrated wavelengths (nm)  850, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470,  1490,1510, 1530, 1550, 1570, 1590, 1610, 1625
Power range (dBm)  26 to –64 (GeX 2 mm)
Uncertainty  ±5 % ± 0.4 nW (up to 5 dBm)
Display resolution (dB)  0.01 (–54 dBm to Pmax)
0.1 (–54 dBm to –64 dBm)
1 (–64 dBm to min)
Automatic offset nulling range (*note h)  Maximum power to —38 dBm
Tone detection (Hz)  270/1000/2000
GENERAL SPECIFICATIONS
Size  (H x W x D) 250 mm x 125 mm x 75 mm (9 7/8 in x 4 15/16 in x 3 in)
Weight 1 kg (2.2 lb)
Operating Temperature   –18 °C to 50 °C (14 °F to 122 °F)
Storage Temperature –40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity  0 % to 95 % non-condensing
Power  Li-ion batteries 8 hours of continuous operation as per Bellcore TR-NWT-001138

Notes
a. All specifications valid at 23 °C ± 2 °C (73.4 °F ± 3.6 °F) with an FC/PC connector, unless otherwise specified.
b. Typical dynamic range with longest pulse and three-minute averaging at SNR = 1. Multimode dynamic range is specified for 62.5 μm fiber; a 3 dB reduction is seen when testing 50 μm fiber.
c. Typical dead zone for multimode reflectance below – 35 dB and singlemode reflectance below –45 dB, using shortest pulse.
d. For multimode port, controlled launch conditions allow 50 μm and 62.5 μm multimode fiber testing.
e. Does not include uncertainty due to fiber index.
f. Typical output power is given at 1300 nm for multimode output and 1550 nm for singlemode output.
g. At 23 ºC ± 1 ºC, 1550 nm and with FC connector. With OTDR in idle mode, battery operated.
h. For ± 0.05 dB, from 18 ºC to 28 ºC.
