EPM30C Fiber Optic Power Meter

SKU#:FITB46521EWV
Model#: EPM30C
Price: US$ 101.65
Sold: 1103
Availability: In Stock
Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Introduction

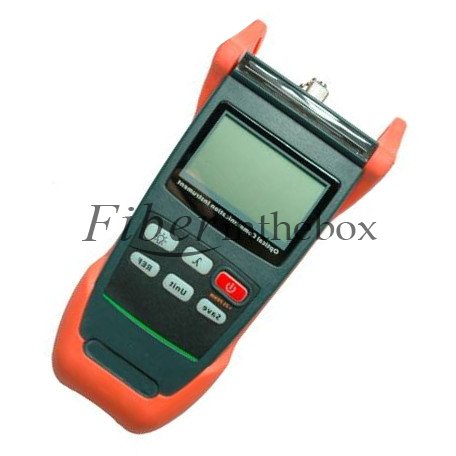

EPM30 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.

Features
Calibrated Wavelengths: 850/1300/1310/1490/1550/1625nm
EPM30T: +6 ~ -70dBm
EPM30C: +26 ~ -50dBm
USB po & data storage
Specifications
  EPM30T EPM30C
Measuring range +6~-70dBm +26~-50dBm
Calibrated wavelengths 850/1300/1310/1490/1550/1625nm
Display resolving power 0.01dB
Connecting adaptor FC/PC & 2.5mm Universal
Accuracy ± 0.2dB
Reference value set Yes
Auto power off About 10 minutes(can be cancelled)
Data storage Yes
Power supply AA * 3 batteries or AC/DC power supply adapter
Size 190mm x 90mm x 40mm
Weight About 400g
Kind Note:we provides FC&SC 2.5mm universal connectors, but ST,LC connectors are optional, different connectors, different price. LC connector is suitable for changeable adaptor.

Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new EPM30C Fiber Optic Power Meter at a large quantity
