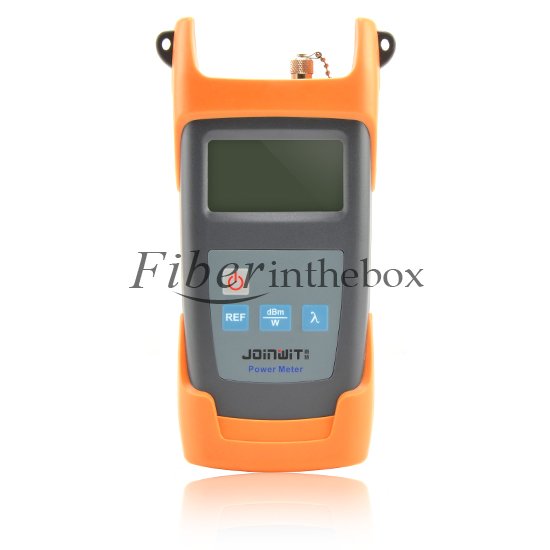

JW3211C Portable Optical Power Meter(-50~+30 dBm)

SKU#:FITB07349OIW
Model#: JW3211C
Price: US$ 121.60
Sold: 2352
Availability: In Stock

Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
JW3211 optical power meter Is a handheld optical power meter, newly released in 2007, which can be used for absolute optical power measurements well as for relative loss measurements in optic fiber networks. An Ø1.0mm photosensitive area photodiode is used significantly improve the stability and the reliability. It features ingenious appearance, wide range of power measurement, accuracy, user self-calibration function and reference power level storage.
Features
Wide dynamic measurement range (up to 80dB)
Reference power level storage(Ref Setting)
User self-calibration function
Comfo able LCD display and backlight LCD display suppo s night operation.
Power measurements in dBm or mw and inse ion loss in dB
10 minutes Auto-off function can be activated or deactivated.
AA alkaline batteries can last more than 140 hours, adaptor also available
Low battery indication
Applications
Telecom Maintenance
CATV Maintenance
Fiber Optic lab testing
Other Fiber Optic Measurements
Standard Packages
Model Includes
All JW3211 Models JW3211 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case
Kind Note
We provide FC, ST, SC Connector for choose. If no special requirement, we will send you the FC connector.
If you need more than one connector, please contact our sales at  sales@fiberinthebox.com  for more details because the price would be different



Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new JW3211 power meter at a large quantity.

Specifications
Type JW3211A JW3211C
Wavelength(nm) 800~1700nm
Detector InGaAs
Detector Size  Ø 1.0mm
Measurement Range (dBm) -70~+10 -50~+30
Uncertainty +/-5%
Calibrated Wavelength (nm) 850, 1300, 1310, 1490, 1550, 1625nm
Resolution (dB) 0.01
Optical Connector FC(interchangeable SC,ST) as well as 2.5mm universal
Power Supply Alkaline Battery (3 AA 1.5V Batteries); AC Adaptor (9V)
Battery Operating Time 140 hours with three 1.5V batteries (3)
Operating Temperature(℃) -10~+60
Storage Temperature(℃) -25~+70
Relative Humidity 0 to 95% (non-condensing)
Dimension (mm) 190x100x50
Weight (g) 370
