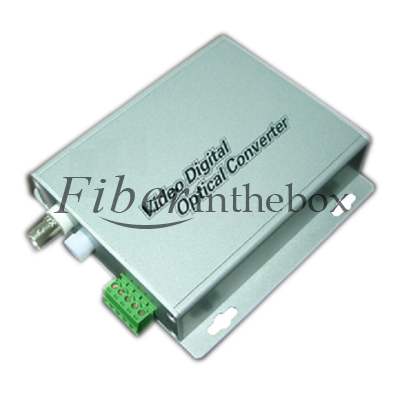

1 Channel Video & 1 Reverse Data to Fiber SM FC 20km Optical Video Multiplexer in Aluminum Alloy Case

SKU#:FITB24998WCO
Model#: FITB-1V1D-SM-FC-20-Al
Price: US$ 56.05
Sold: 2284
Availability: In Stock
Connector Type:
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 56.05 10-19US$ 54.93 20-49US$ 53.81 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

1 Channel Video & 1 Reverse Data to Fiber SM FC 20km Optical Video Multiplexer in Aluminum Alloy Case

Description
Model: FS-1V1D-SM-FC-20KM-Al
Case Body: Aluminum alloy
Transmitter + Receiver
Fiber Mode: Single-Mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum Transmission Distance: 20km
Fiber Optic Video Transmitter & Receiver transmission 1 Channel digital composite video and 1 reverse data, the data suppo RS485, RS232, RS422 protocols
Standalone- (Inse card version also available ,which can be inse ed into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
Standard Single-Mode 20KM- (Multimode also available, which suppo for distances up to 2.0 km)
Key Features
No rusty and could be used in special environment, ie: Coal mine site
Suppo Point-to-Point or Daisy-Chain connection
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Single-Mode Fiber Suppo for Distances up to 100 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Suppo Coarse Wavelength Division Multiplexing (CWDM)
Stand alone
Produce according to customer's specifications,providing OEM
Specifications
Video Connectors
Number of Channels 1 channel Video Video 75Ω BNC (Gold Center Pin)
Input/output impedance BNC 75Ω Data 3 Pin Terminal Block
Input/output Compatibility PAL,NTSC,SECAM Optical FC (Standard)
Input/output voltage 1.0 Volt p-p Standalone power Screw terminal block
Bandwidth 6.5MHZ Rack Power AC line card
Bit Resolution 8-Bit Digital Transmission Electrical & Mechanical
Differential Gain < 1.5% Input Power Requirements DC 5V@2A
Differential Phase < 1.5° Power Adapter AC 100V~240V
Tilt < 5% Power Consumption < 3W
Signal-to-Noise Ratio(SNR) > 67 dB Shipping weight 2.4kg(include TX & RX)
Data
Data Formats RS485(2-wire or 4-wire), RS232/422,Contact Closure
Data Rate DC to 115.2Kbps
Bit Error Rate 10E-9
Environmental
Operating Temperature -45°C~+75 °C Storage Temperature -45°C~+85 °C
Relative Humidity 0%~95% (non-condensing) MTBF >100,000 hours
