2 Fibers Multimode PVC Single-Jacket with FRP Strength member FTTH Indoor Cable

SKU#:FITB39471LKA
Model#: FTTH-FRP-PVC-MM-2-FITB
Price: US$ 0.17 ( Per Meter )
Sold: 71
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 0.17 10-19US$ 0.17 20-29US$ 0.17 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

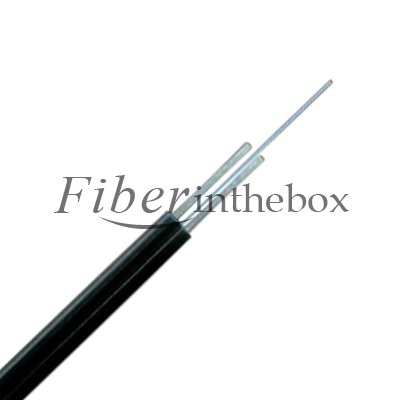

2 Fibers Multimode PVC Single-Jacket with FRP Strength member FTTH Indoor Cable
The price on the website is per meter price. The more, the cheaper.
The 2 fibers FTTH indoor cables with PVC jacket from Fiberinthebox are designed for use in horizontal, ve ical, and corner cabling. With two parallel FRP strength members to ensure good performance of crush resistance and protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. Usually, this cable is suitable for indoor and outdoor along the wall, roof, sandwich and duct connected directly cloth optical fiber cable to standard and solid structure design produce communication equipment tail fiber and activity connecting line can be applied directly to the connection between the equipment.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y. Novel flute design, easily strip and splice, simplify the installation and maintenance. Small diameter, water-resistant, soft and bendable. PVC sheathed flame resistance is very good, high mechanical strength, good electric insulation.Light and hard, not conductive, high mechanical strength, recycling less, corrosion resistance.Longer cable life.
Specification
Fiber Type Multimode
Fiber core diameter  50µm, 62.5µm
Wavelengths 850nm / 1300nm
Fiber Count 2
Environment FTTH Indoor Cables
Attenuation  ≤3.5 dB/km(@850nm)
≤1.5 dB/km(@1300nm)
Max. Tensile Strengths, Sho -Term 60N
Max. Tensile Strengths, Long-Term 30N
Max. Crush Resistance, Sho -Term  1000N
Max. Crush Resistance, Long-Term 300N
Static Bending Radius 15mm
Dynamic Bending Radius 30mm
Diameter(mm)  (2.0±0.2)×(3.4±0.2)
Sheath Material  PVC
Jacket Color  Black
Weight 10kg/km
Storage/Operating Temperature -20 °C to +60 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: 1 ~ 2 fibers or custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified
