24 Fibers Multimode Double-Jacket LSZH Loose Tube Cable

SKU#:FITB50040WRZ
Model#: IO-MDJ-MM-24-FITB
Price: US$ 1.51 ( Per Meter )
Sold: 4217
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

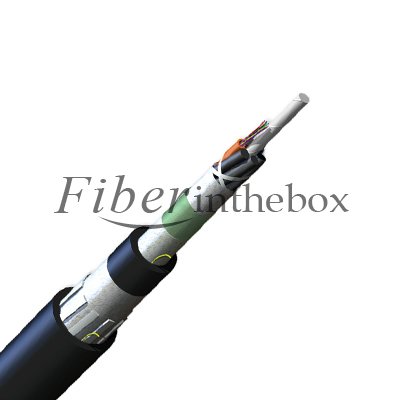

24 Fibers Multimode Double-Jacket LSZH Loose Tube Cable
The price on the website is per meter price. The more, the cheaper.
The 24 Fibers Multimode Double-Jacket LSZH Loose Tube Cables from Fiberinthebox are designed for industrial building backbones and harsh environments atypical of traditional datacom systems. With two durable LSZH jackets, these cables are ideal for applications requiring the added mechanical and environmental protection. Double Jacket combines flexibility with extra mechanical protection for a durable, reliable cabling solution that is easy to handle and install. Due to halogens in the jacket compound, these cables pose little risk in the controlled and protected environment of typical building air spaces, such as behind walls, under floors and in conduit. With LSZH compound, these cables do not drip when superheated, meanwhile the material burns to ash so it eliminates the risks in the event ofa fire in the industrial environment. The cables’ outstanding long-term performance and reliability begins with its field-proven loose tube design.
Features
Two Low-smoke/zero-halogen (LSZH) jackets deliver extra protection Proven loose tube design for performance Small diameter for ease of handling Lightweight, flexible, and easy to install, yet highly durable and reliable
Specification
Fiber Type Multimode
Fiber Core Diameter 50/125, 62.5/125µm
Wavelengths 850nm/1300nm
Fiber Count 24
Environment Indoor/Outdoor Cables
Application Aerial, Direct Buried, Duct, General Purpose Horizontal, Ve ical Riser
Cable Type Loose Tube
Flame Rating

LSZH

Tight Buffer Color Blue, Orange
Outer Jacket Color Black
Max.Tensile Strengths,Sho -Term

4500N

Max.Tensile Strengths,Long-Term

1500N

Min. Bend Radius Installation

264mm

Min. Bend Radius Operation

176mm

Weight

299 kg/km

Storage Temperature

- 50°C to 75 °C

Installation Temperature

- 30°C to 60°C

Operation Temperature

- 50°C to 75 °C

Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified FiberType: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
