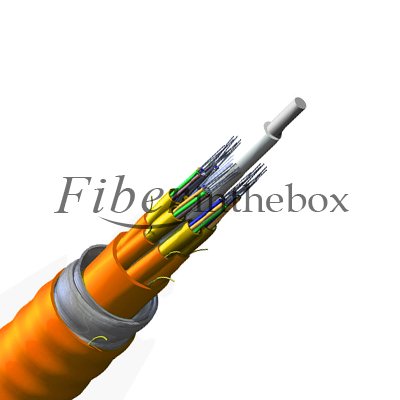

48 Fibers Single-mode Plenum Unitized Tight-Buffered Indoor Cable

SKU#:FITB67977MBG
Model#: FC-ITB-SMUP-48
MFG PART#: FC-ITB-SMUP-48
Price: US$ 3.28 ( Per Meter )
Inventory changes frequently, please kindly contact us at service@fiberinthebox.com before placing an order
Sold: 873
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 3.28 10-19US$ 3.21 20-29US$ 3.15 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
48 Fibers Single-mode Plenum Unitized Tight-Buffered Indoor Cable
The price on the website is per meter price. The more, the cheaper.
The 48 fibers Single-mode Plenum Unitized Tight-Buffered Indoor Cables from Fiberinthebox are available for all inter and intra-building cables. The interlocked armor design uses a spiral wrapped interlocking metal tape for superior crush resistance while ensuring maximum flexibility, also one-step installation and over seven times the crush protection of unarmored cables. Cables utilizing this armor option are ideally suited for routing inside plenum areas or in riser shafts. They use individually jacketed buffered fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. With a flame-retardant outer jacket, this cable is pa icularly useful for heavy traffic or more challenging mechanical exposure conditions.
Features
Buffered fibers, easy and consistent stripping6 or 12 fibers jacketed subunits, quick and easy identificationFlame-Retardant safety, rugged and durable under stress Eliminates need for ductwork or conduit Easy cable installation
Specification
Fiber Type Single-mode
Fiber Core Diameter 8.2 μm
Wavelengths 1310nm/1550nm
Fiber Count 48
Environment Indoor Cables
Application General Purpose Horizontal, Ve ical Riser
Cable Type Tight-Buffered
Flame Rating Riser (OFCR)
Subunit Color Aqua
Max. Tensile Strengths, Sho -Term 1320N
Max. Tensile Strengths, Long-Term 400N
Min. Bend Radius Installation 354mm
Min. Bend Radius Operation 236mm
Weight 430 kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -10 °C to 60 °C
Operation Temperature -20 °C to 70 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: 2 ~ 288 fibers or custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified
Specifications
Fiber Type Single-mode
Fiber Core Diameter 8.2 μm
Wavelengths 1310nm/1550nm
Fiber Count 48
Environment Indoor Cables
Application General Purpose Horizontal, Vertical Riser
Cable Type Tight-Buffered
Flame Rating Riser (OFCR)
Subunit Color Aqua
Max. Tensile Strengths, Short-Term 1320N
Max. Tensile Strengths, Long-Term 400N
Min. Bend Radius Installation 354mm
Min. Bend Radius Operation 236mm
Weight 430 kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -10 °C to 60 °C
Operation Temperature -20 °C to 70 °C
