12 Fibers Single-mode Gel-Filled Ribbon LSZH Indoor/Outdoor Riser Cable

SKU#:FITB30753FOJ
Model#: IO-SGF-LSZH-SM-12-FITB
Price: US$ 2.53 ( Per Meter )
Sold: 1946
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

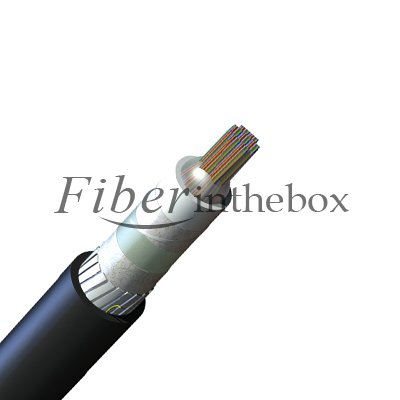

12 Fibers Single-mode Gel-Filled Ribbon LSZH Indoor/Outdoor Riser Cable
The price on the website is per meter price. The more, the cheaper.
The 12 Fibers Single-mode Gel-Filled Ribbon LSZH Indoor/Outdoor Riser Cables from Fiberinthebox are ideal for outdoors or in indoor general purpose horizontal applications. These cables can maximize the use of critical duct space with excellent installation results as their smallest and lightest standard. The precise fiber and ribbon geometries result in excellent mass splicing yields. These cables are available in preconnectorized assemblies which made easy field installation and reduced labor costs. With LSZH compound, these cables do not drip when superheated, meanwhile the material burns to ash so they eliminate the risks in the event of a fire in the industrial environment.
Features
Fiber and ribbon geometries provide excellent mass-fusion splicing resultsColor-coded fibers make quick and easy identification UV-resistant, flame-retardant jacket is rugged, durable and easy to strip Low-smoke/zero-halogen (LSZH) sheath, key life-safety benefit Easy handling
Specification
Fiber Type Singlemode
Fiber Core Diameter 8.2µm
Wavelengths 1310nm/1550nm
Fiber Count 12
Environment Indoor/Outdoor Cables
Application Aerial, Direct Buried, Duct, General Purpose Horizontal, Ve ical Riser
Cable Type

Ribbon

Flame Rating

LSZH (OFN-LS)

Tight Buffer Color Blue, Orange
Outer Jacket Color Black
Max.Tensile Strengths,Sho -Term 2700N
Max.Tensile Strengths,Long-Term

890N

Min. Bend Radius Installation

381mm

Min. Bend Radius Operation

254mm

Weight

577kg/km

Storage Temperature -40°C to 70°C
Installation Temperature -10°C to 60°C

Operation Temperature

-40°C to 70°C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
