12 Fibers Multimode Distribution Indoor/Outdoor Cable

SKU#:FITB96659MCV
Model#: IO-DIS-MM-12-FITB
Price: US$ 1.13 ( Per Meter )
Sold: 368
Availability: In Stock
Length:

Roll(s):
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 1.13 10-19US$ 1.11 20-29US$ 1.09 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

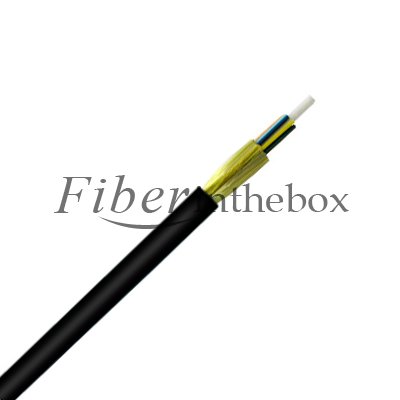

12 Fibers Multimode Distribution Indoor/Outdoor Cable
The price on the website is per meter price. The more, the cheaper.
The 12 Fibers Multimode Distribution Indoor/Outdoor Cables from Fiberinthebox are lightweight, has a low bending radius and is suitable for both indoor and outdoor installations. The cable design combined with the tight-buffered fibres offer quick and easy cable and fibre preparation and the ability to directly terminate the fibres. This cable can be run outdoors as well as indoors. Since the cable does not contain the petroleum-based gel used in most outdoor cables as a water block, the cable can be run indoors at any distance. The cable can be terminated with connectors at one or both ends in conjunction with various styles of fan-out kits at any breakout length. This cable is all -dielectric and consists of 900μm tight buffered fibers surrounded by aramid yarn strength members and a central strength member. It is ideal for installation in indoor/outdoor, LAN and distribution networks.
Features
Lightweight and easy to handle Ideal for installation in indoor/outdoor, LAN and distribution networks?All dielectric structure protects it from electromagnetic influence Jacket is anti-corrosion, anti-water, anti-ultraviolet radiation, harmless to environment etc; Buffer is soft, flexible, easy to splice, and with big capacity data transmission Small bending radius and flexible for ease of installation, especially in confined spaces Fibers can be directly terminated, no need for fan-out kits or splicing thereby reducing lossesExcellent performance of anti-torsion
Specification
Fiber Type Multimode
Fiber Core Diameter 50µm, 62.5µm
Wavelengths 850nm/1300nm
Fiber Count 12
Environment Indoor/Outdoor Cables
Application

General Purpose Horizontal / Ve ical Riser  inoodr,  Outdoor in conduit

Cable Type Tight-Buffered
Flame Rating

Riser (OFNR)

Tight Buffer Color Black
Outer Jacket Color Black
Max.Tensile Strengths,Sho -Term

1300N

Max.Tensile Strengths,Long-Term

300N

Weight

54kg/km

Storage Temperature

-20°C to 75°C

Installation Temperature

-20°C to 75°C

Operation Temperature

-20°C to 75°C

Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified FiberType: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
