1 Fiber Single-mode PVC Single-Jacket with Metal Strength Member FTTH Indoor Cable

SKU#:FITB62924ZBA
Model#: FTTH-MET-PVC-SM-1-FITB
Price: US$ 0.21 ( Per Meter )
Sold: 4138
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 0.21 10-19US$ 0.20 20-29US$ 0.20 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

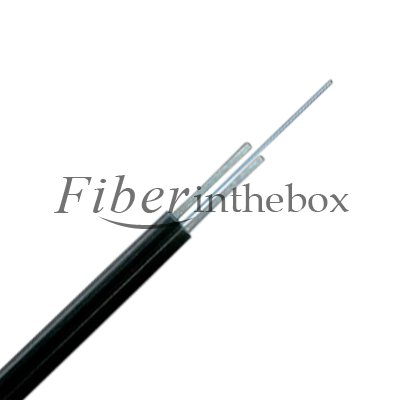

1 Fiber Single-mode PVC Single-Jacket with Metal Strength Member FTTH Indoor Cable
The price on the website is per meter price. The more, the cheaper.
The 1 fiber FTTH indoor cables with PVC jacket from Fiberinthebox are designed for use in horizontal, ve ical, and corner cabling. With two parallel Metal strength members to ensure good performance of crush resistance and protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. Usually, this cable is suitable for indoor and outdoor along the wall, roof, sandwich and duct connected directly cloth optical fiber cable to standard and solid structure design produce communication equipment tail fiber and activity connecting line can be applied directly to the connection between the equipment.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y. Novel flute design, easily strip and splice, simplify the installation and maintenance. Flame retardant resistance, chemical resistance and high mechanical strength and electrical insulation good advantages Small diameter, water-resistant, soft and bendable Under high pressure and tensile force Longer cable life.
Specification
Fiber Type Single-mode
Fiber core diameter  8.2μm
Wavelengths 1310nm / 1550nm
Fiber Count 1
Environment FTTH Indoor Cables
Attenuation  ≤0.45dB/km (@1310nm)
≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term 60N
Max. Tensile Strengths, Long-Term 30N
Max. Crush Resistance, Sho -Term  1000N
Max. Crush Resistance, Long-Term 300N
Static Bending Radius 15mm
Dynamic Bending Radius 30mm
Diameter(mm)  (2.0±0.1)×(3.0±0.1)
Sheath Material

PVC

Jacket Color  Black
Weight

15kg/km

Storage/Operating Temperature -20 °C to +60 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
