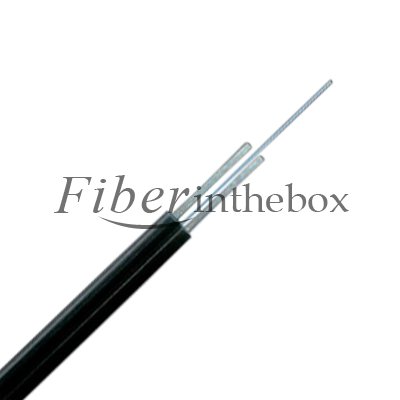

2 Fibers Single-mode LSZH Single-Jacket with KFRP Strength Member FTTH Indoor Cable

SKU#:FITB76638WNS
Model#: FTTH-KFRP-LSZH-SM-2-FITB
Price: US$ 0.33 ( Per Meter )
Sold: 4835
Availability: In Stock
Length:

Roll(s):
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
2 Fibers Single-mode LSZH Single-Jacket with KFRP Strength Member FTTH Indoor Cable
The price on the website is per  meter price. The more, the cheaper.
The 2 fibers FTTH indoor cables with LSZH jacket from Fiberinthebox are designed for use in horizontal, ve ical, and corner cabling. With two parallel KFRP strength members ensure good performance of crush resistance to protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. Usually, this cable is suitable for indoor and outdoor along the wall, roof, sandwich and duct connected directly cloth optical fiber cable to standard and solid structure design produce communication equipment tail fiber and activity connecting line can be applied directly to the connection between the equipment.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y. Novel flute design, easily strip and splice, simplify the installation and maintenance. Small diameter, water-resistant, soft and bendable. Low smoke, low poison, low corrosion, high flame retardant. Zero halogen material, environmental protection. Longer cable life.
Specification
Fiber Type Single-mode
Fiber core diameter  8.2μm
Wavelengths 1310nm/1550nm
Fiber Count 2
Environment FTTH Indoor Cables
Attenuation  ≤0.45dB/km (@1310nm)
≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term 60N
Max. Tensile Strengths, Long-Term 30N
Max. Crush Resistance, Sho -Term  1000N
Max. Crush Resistance, Long-Term 300N
Static Bending Radius 15mm
Dynamic Bending Radius 30mm
Diameter(mm)  (2.0±0.1)×(3.0±0.1)
Sheath Material  LSZH
Jacket Color  Black
Weight 12kg/km
Storage/Operating Temperature -20 °C to +60 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
