1 Fiber Single mode PVC Single-Jacket with FRP Strength Member FTTH Drop Cable

SKU#:FITB36855MDJ
Model#: FTTH-D-FRP-PVC-SM-1-FITB
Price: US$ 0.24 ( Per Meter )
Sold: 2867
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 0.24 10-19US$ 0.23 20-29US$ 0.23 30-49 Sign in to view 50+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

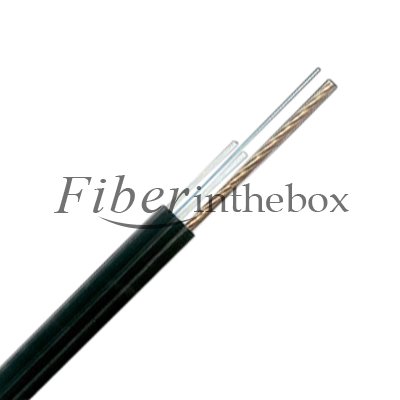

1 Fiber Single-mode PVC Single-Jacket with FRP Strength Member FTTH Drop Cable
The price on the website is per meter price. The more, the cheaper.
The 1 fiber FTTH Drop cables from Fiberinthebox with two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. A steel wire as the additional strength member is also applied to ensure good performance of tensile strength. The PVC jacket with high Fire heat, enable the FTTH drop cable can operate in high-temperature. Usually this cable is suitable for Indoor riser level and plenum level cable distribution and between instruments, communication equipments.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y Single steel wire or massagers as the additional strength member ensures good performance of tensile strength Strong flame resistance, high mechanical strength an chemical prope ies, goog electrical insulation Novel flute design, easily strip and splice, simplify the installation and maintenance.Small diameter, water-resistant, soft and bendable Longer cable life.
Specification
Fiber Type Single-mode
Fiber core diameter  8.2μm
Wavelengths 1310nm/1550nm
Fiber Count 1
Environment FTTH Indoor Cables
Attenuation  ≤0.45dB/km (@1310nm)
≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term 120N
Max. Tensile Strengths, Long-Term 60N
Max. Crush Resistance, Sho -Term  1000N
Max. Crush Resistance, Long-Term 300N
Static Bending Radius 15mm
Dynamic Bending Radius 30mm
Diameter(mm)  (2.0±0.1)×(5.0±0.1)
Sheath Material  PVC
Jacket Color  Black
Weight 21kg/km
Storage/Operating Temperature -20°C to +60°C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
