2 Fibers Single-mode LSZH Single-Jacket with KFRP Strength Member FTTH Drop Cable

SKU#:FITB11801GCC
Model#: FTTH-D-KFRP-LSZH-SM-2-FITB
Price: US$ 0.35 ( Per Meter )
Sold: 679
Availability: In Stock
Length:

Roll(s):
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

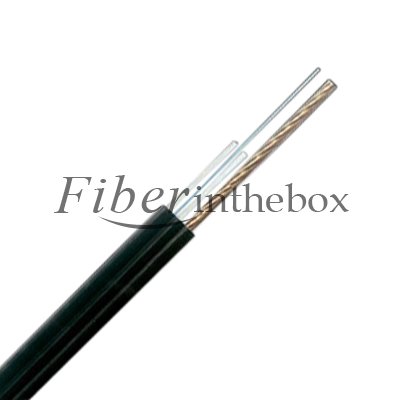

2 Fibers Single-mode LSZH Single-Jacket with KFRP Strength Member FTTH Drop Cable
The price on the website is per meter price. The more, the cheaper.
The 2 fibers FTTH Drop cables from Fiberinthebox with two parallel KFRP strength members to ensure good performance of crush resistance and protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. A steel wire as the additional strength member is also applied to ensure good performance of tensile strength. The LSZH sheathed with high flame resistance enables the FTTH drop cable can operate in high-temperature. Usually this cable is suitable for Indoor riser level and plenum level cable distribution and between instruments, communication equipments.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope ySingle steel wire or massagers as the additional strength member ensures good performance of tensile strength Low smoke, zero halogen and flame retardant sheathNovel flute design, easily strip and splice, simplify the installation and maintenanceSmall diameter, water-resistant, soft and bendable Longer cable life.
Specification
Fiber Type Single-mode
Fiber core diameter  8.2μm
Wavelengths 1310nm/1550nm
Fiber Count 2
Environment FTTH Indoor Cables
Attenuation  ≤0.45dB/km (@1310nm)
≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term 120N
Max. Tensile Strengths, Long-Term 60N
Max. Crush Resistance, Sho -Term  1000N
Max. Crush Resistance, Long-Term 300N
Static Bending Radius 15mm
Dynamic Bending Radius 30mm
Diameter(mm)  (2.0±0.1)×(5.0±0.1)
Sheath Material  LSZH
Jacket Color  Black
Weight 23kg/km
Storage/Operating Temperature -20 °C to +60 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
