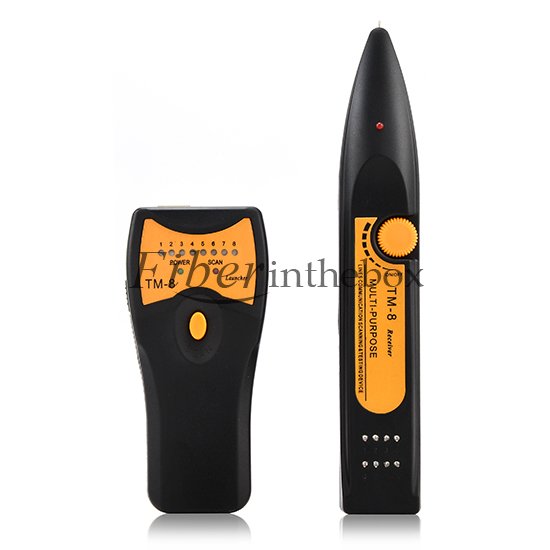

TM-8 Multi-Purpose Network Cable Tester & Wire Line Tracker

SKU#:FITB58925BMD
Model#: TM-8
Price: US$ 18.43
Sold: 2311
Availability: In Stock
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
This Multi-function Network Cable Line Tester & Tracker is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone line, it can identify some state in the line, it is very convenience for use in telephone line installation, debug, maintenance telephone line. It is really a kind of professional & safe tool for wirema.
Features
Cable Tester for UTP STP RJ45 (manual switch)
Automatic efficient scan for the miss wiring, disorder cable, open and sho circuit
TEL BNC test available(Adapter needed)
Remotely test cable up to 1000 ft in length ( remote kit included )
Protective power switch for low power consumption
High quality protective case provides more secure protection
Judge continuity of the cables or wires
Track the cables or wires, and diagnose the break point
Receiver the tone signal on the cables or wires (telephone line)
Identify the state in the working telephone line (clear ring, busy)
Send a single solid tone or a dual alternating tone to the object cables or wires
Specification
Power supply: DC 9V battery
Working current: Tester: ≤20mA; Receiver: ≤150mA
Signal transfer mode: Digital signal
Signal output level: 8Vp-p
Signal transfer distance: ≥3Km
Dimension: Transmitter: 130x60x33mm; Receiver: 210x35x25mm
Package Including
1 x Cable Transmitter
1 x Cable Receiver/Tracker
1 x RJ45 Cable
1 x RJ11 Cable
1 x Cable with crocodile clamp
1 x Earphone
1 x Instruction manual
