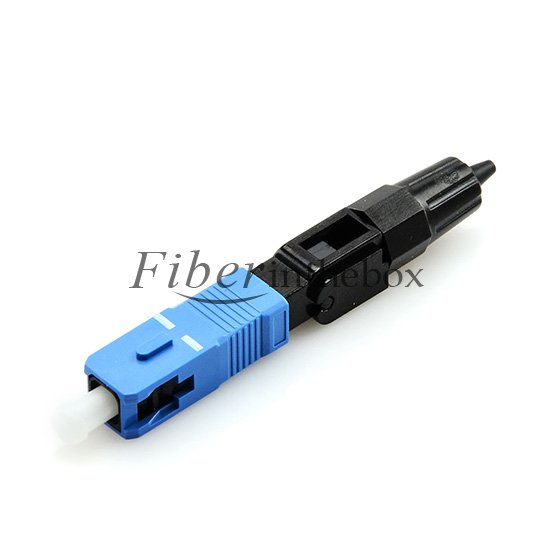

Strsight-through Fast Connector
Ferrule in optical fiber straight-through fast connector have no reserved fiber, there is no splice point in V-Groove, fiber end can be checked when construction, and without intermittent points in it.
Features
Streamlined component design, convenient operation 90 seconds (disregard of fiber processing) to complete continuation Linkage design, remove ceramic pin compression and optical fiber bent or Break caused by optical fiber design Pre-installed, on-site assembly without end face grinding and consideration Matching fluid life impact Unique tail clamping mechanism to ensure the tensile strength, security and stability Excellent inse ion loss and return loss All kinds of connectors and end-face grinding are applicable Available for 0.9/2.0/3.0mm fiber cable
Specifications
| Connector types | SC,FC | ||
| dimension | 50mm | ||
| Fiber cable type | 0.9/2.0/3.0mm fiber cable | ||
| Grinding end-face | PC,UPC,APC | ||
| Inse ion loss | SM | PC/UPC | APC |
| ≤0.2dB | ≤0.2 dB | ||
| Return loss | SM | PC/UPC | APC |
| ≥45dB | ≥50dB | ||
| Tension test | ≥100N | ||
| Temperature range | -40℃~+75℃ | ||
