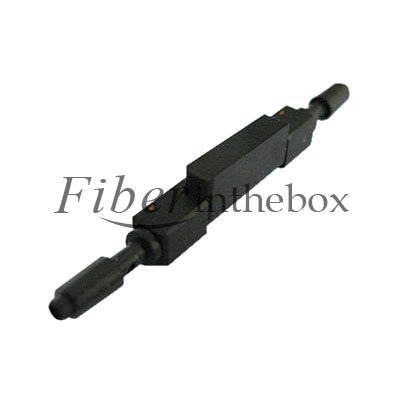

MC-L925B Optical Fiber Mechanical Splicer
Mechanical splicing maintains physical contact between mating fibers. Fiber can be spliced simply in this way in a very sho time, a typical installation of Fiberinthebox Mechanical Splice takes less than two minutes. It can be used for 900/900µm ,250/250 µm, 250/900 µm fibers..
Features
Unique Box type crimping technology Precision metal alloy components coaxial autocollimator on the core, excellent durable optical performance Fiber axial solid fit, reducing the performance degradation caused by the loss of matching fluid Intermittent fit connection technology to ensure signal transmission Bare fiber, tight-clad and pigtail triple can fully meet environmental requirements for end-customer Integrated shell protection, can be long-term used outside High rate of success for installation and easy installation, the average connecting time is 150 seconds It is applicable for optical fiber splicing and restoration for damaged lines.
Applications
Specifications
| ITEM | Technical Parameters |
| Applicable for | φ0.25 mm &φ0.90 mm Fiber |
| Optical fiber diameter | 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single & multi mode |
| Operation time | About 60s( no fiber cut ) |
| Inse loss | ≤ 0.1dB（1310nm & 1550nm） |
| Return loss | ≥40dB |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Using temperature | -40℃～+75℃ |
| Repeatability（10 times） | △ IL ≤ 0.2dB △ RL ≤ 5dB |
