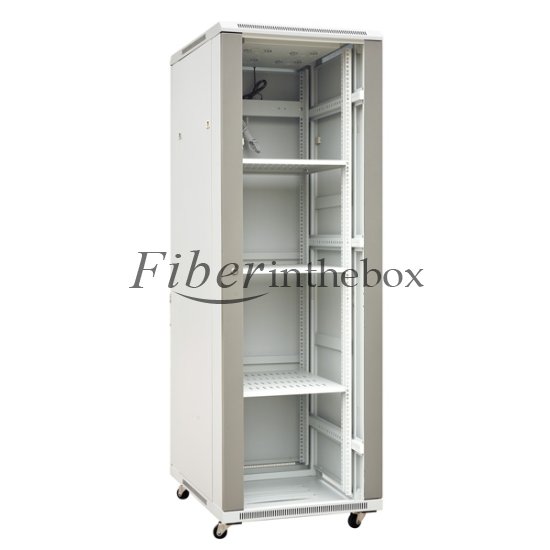

19" Network cabinet type A 14U FITB-TA-14U-600-1000 Landing Chassis

SKU#:FITB90540AKW
Model#: FITB-TA-14U-600-1000
Price: US$ 224.20
Sold: 916
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 224.20 10-39US$ 219.72 40-69US$ 215.23 70-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
Network cabinets, used to store the 19-inch standard or non-standard equipment such as routers, switches, patch panels, servers, monitors, UPS modules. With good usability and security facilities, easy to operate, installation and maintenance, ensures the safety of the operator.The back of the cabinet mesh door with vent, helps our inter modules still cool. Front door is the glass door or flat door, which can be replaced with: glass column mesh door, double open mesh door, the wave mesh door, side mesh door.
Application
Network cabinet for electronic equipment to work the environment and security
Features
Exquisite design with precise craftsmanship Reliable Structure, the Large Static Loading Capacity:500KG(Optional Castors and Plinth) Welded steel frame for front and back pa , can be flat packing, easy to transfer Tempered glass front door with over 180 turning degree; vented front door border Steel rear door with little round lock, optional other lock Removable side panel with latch, easy to install, optional lock Adjustable feet and castors sre available simultaneously Cable entry on the top, adjustable cable entrance at the bottom with panel Advanced handle locks for front door, optional other lock S-shaped mounting profile, free to move forward and back Efficient baying kit of cabinet, Ea hing kit Optional plinth to fix cabinet on the floor; under base cable entry Various optional accessories for common using Unassembled packing, about 2/5 of original volume, save container space
Material
SPCC quality cold rolled steel Others: SPCC quality cold rolled steel Thickness: Mounting profile: 2.0mm; Mounting angle: 1.5mm; other: 1.2mm
Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART 7, ETSI Standard
Loading Capacity:
Static loading: 500kg (on the adjustable feet)
Surface finish:
Degreaseing, Pickling, Phosphating, Powder Coated
Size:
Width:600mm Depth:1000mm Height:14U Net Dimension: 600*1000*14U(800mm) Packing size:820*620*1020(mm)
Configuration Instructions:
2 Fans, 1 Layper board, 1 Power supply
