FITB-OEO800-OLP-1+1 Optical Switch Line Card
FITB-OEO800-OLP is with features of transparent transmission, high reliability, as well as rapid fault recovery, which can help customers to establish a long-distance, non-blocking, high-reliability, flexible and disaster-resist optical transpo network.
FITB-OEO800-OLP provides four types of line protection: 1:1 line protection, 1+1 line protection, BP bypass protection and SR protection. For OLP service boards, switching control and management control are separated. Link switching is guaranteed in priority. The switching time delay is sho er than 15ms. It offers 1+1 dual redundant power supply as backup. Designed in compliance with industrial standards, it is with strong adaptability to environments, and can be applied in complicated environments. Moreover, it suppo s graphical network management system and three types of management modes such as Console, Telnet and EMS are available for option. Remote upgrade is available as well, which facilitates future management and maintenance.
FITB-OEO800-OLP provides four types of line protection: 1:1 line protection, 1+1 line protection, BP bypass protection and SR protection. For OLP service boards, switching control and management control are separated. Link switching is guaranteed in priority. The switching time delay is sho er than 15ms. It offers 1+1 dual redundant power supply as backup. Designed in compliance with industrial standards, it is with strong adaptability to environments, and can be applied in complicated environments. Moreover, it suppo s graphical network management system and three types of management modes such as Console, Telnet and EMS are available for option. Remote upgrade is available as well, which facilitates future management and maintenance.
Key Features
It offers multiple line protection modes as 1+1, 1:1, BP and SR It can be locked when there is no optical signal It suppo s three management modes: Console, Telnet and network management system It suppo s TFTP remote upgrade The switching module is designed with simple and stable circuit, which is with high reliability. Control modules are separated from each otherIt is with built-in 1+1 dual redundant power supply, applying to a wide voltage range, which is much safer and stable

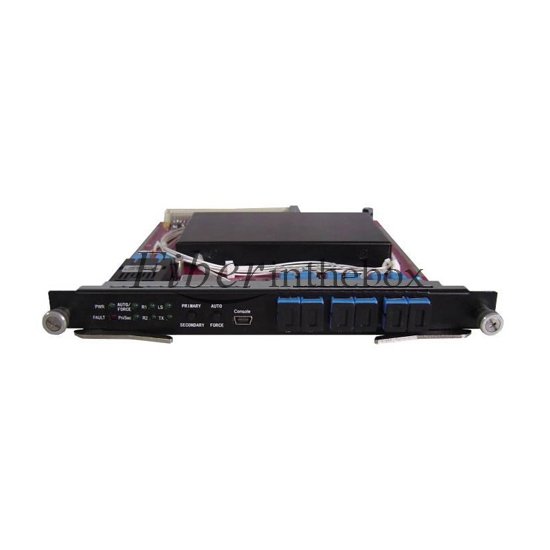

Front Panel Appearance
Valid Slots
The FITB-OEO800-OLP-1:1 occupies one slot.
Valid Slots in the Sub-racks
a. In the OEO802 chassis, valid slots of the board are SLOT1 and SLOT2.
b. In the FITB-OEO800-I chassis, valid slots of the board are SLOT2 to SLOT4.
c. In the FITB-OEO800-II chassis, valid slots of the board are SLOT2 to SLOT8.
d. In the FITB-OEO800-V chassis, valid slots of the board are SLOT1 to SLOT15.
Valid Slots in the Sub-racks
a. In the OEO802 chassis, valid slots of the board are SLOT1 and SLOT2.
b. In the FITB-OEO800-I chassis, valid slots of the board are SLOT2 to SLOT4.
c. In the FITB-OEO800-II chassis, valid slots of the board are SLOT2 to SLOT8.
d. In the FITB-OEO800-V chassis, valid slots of the board are SLOT1 to SLOT15.
Typical Application Cases of FITB-OEO800 Series
Site-to-Site Standard Transmission
.jpg){kind=spacer}
Site-to-Site Ultra-Long-Haul Transmission With Repeater
Ultra-Long-Haul Repeaterless Transmission
Unidirectional WDM Transmission
Specifications
|
Performance |
Parameter |
||
|
Wavelength Range |
1310±50nm & 1550±50nm |
||
|
Monitoring Range of Optical Power |
＋23～-50 dBm |
||
|
Insertion Loss |
1+1 Protection |
Transmitter |
≤ 3.8 dB |
|
Receiver |
≤ 1.2 dB |
||
|
1:1 Protection |
≤ 1.5 dB |
||
|
BP Bypass Protection |
≤ 1.5 dB |
||
|
SR Protection |
≤ 1.5 dB |
||
|
Return Loss |
≥45dB |
||
|
Crosstalk |
≥55dB |
||
|
Optical Power Resolution |
≤0.01dB |
||
|
Optical Power Measurement Accuracy |
≤0.5dB（＋25 dBm ～ -40dBm ） ≤1.0dB（-40 dBm ～ -50dBm ） |
||
|
Wavelength Dependent Loss |
≤0.25dB |
||
|
Polarization Dependent Loss |
≤0.1dB |
||
|
Switching Time |
≤15ms |
||
