Features
One-step action
Cleave anywhere- in your palm or on your desktop
Easy fiber loading
Simple operation
High capacity waste fiber collection
Durable design
Easy Maintenance on-site
|
SPECIFICATIONS |
|
|
Fiber types |
All fiber types, single to 12-fiber ribbons |
|
Clad Diameter |
0.125mm |
|
Coating Diameter |
0.25mm and 0.9mm for single fiber; 0.3mm to 0.4mm thickness for ribbons |
|
Cleave length |
Single fiber: Fixed length-10 & 16mm Variable length – 3 to 20mm Ribbon fiber: 10mm Fixed length |
|
Dimensions/Weight |
93W x 68D x 52H (mm); 330g |
|
Standard Package |
||
|
Model |
Item |
Qty |
|
S326 |
Main body |
1 |
|
Soft carrying case |
1 |
|
|
Operation manual |
1 |
|

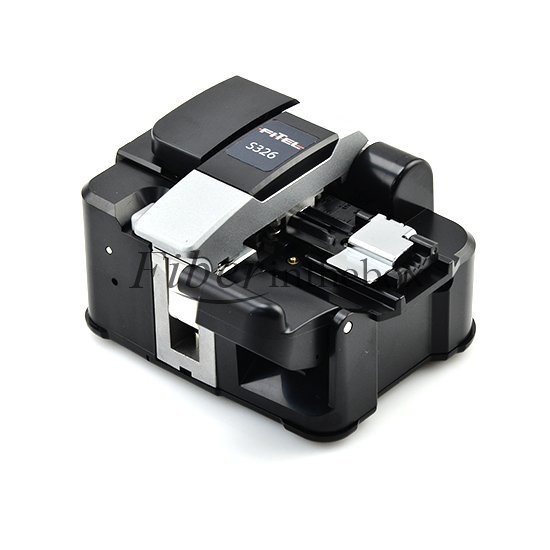

Fiber optic cleaver is used to cut the fiberglass to make a good end face, and it is very impo ant in the fiber splicing process, it works together with the fusion splicer to meet the end needs. Fiberinthebox supply all kinds of high precision fiber cleaver, if you need this Furukawa S326 Hand-held High Precision Cleaver at a large quantity, welcome to contact us, we will provide you a special discount.
|
SPECIFICATIONS |
|
|
Fiber types |
All fiber types, single to 12-fiber ribbons |
|
Clad Diameter |
0.125mm |
|
Coating Diameter |
0.25mm and 0.9mm for single fiber; 0.3mm to 0.4mm thickness for ribbons |
|
Cleave length |
Single fiber: Fixed length-10 & 16mm Variable length – 3 to 20mm Ribbon fiber: 10mm Fixed length |
|
Dimensions/Weight |
93W x 68D x 52H (mm); 330g |
