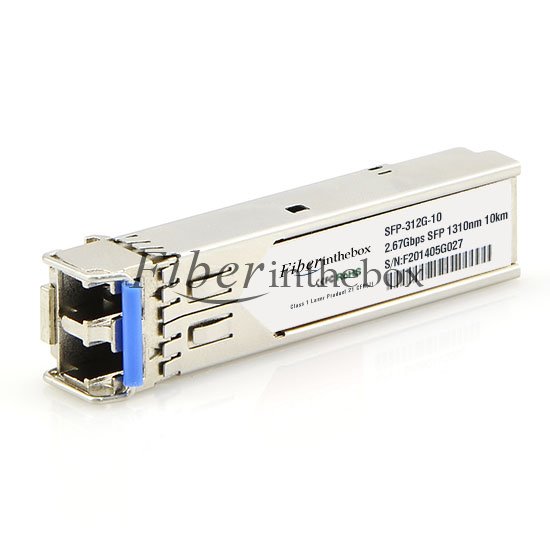

2.67Gbps STM1/STM4/STM16 SFP 1310nm 10km SMF Optical Transceiver

SKU#:FITB09338LDN
Model#: SFP-2G31-10-xx
xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
Price: US$ 57.00
Sold: 2720
Availability: In Stock
:
Digital Diagnostic Monitor gives users the ability to monitor the real-time parameters of transceiver, such as optical output power, optical input power, temperature, laser-bias current and transceiver supply voltage.
:
Standard Temperature: 0~70℃
Extended Temperature: -20~85℃
Industrial Temperature: -40~85℃
:
Looking for a perfect transceiver? Fiberinthebox provide customized solutions for all needs and specifications,like P/N,S/N,Vendor Name,Label,etc. We create a made-to-order transceiver just for you. Please email us at sales@Fiberinthebox.com for your additional customized requirements.
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 57.00 10-19US$ 55.86 20-49US$ 54.72 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
SFP-2G31-10-xx
The Fiberinthebox’s Multi-rate Series 2.67Gb/s transceiver module integrates optics and electronics in a Small Form Factor Pluggable (SFP) package. It is Multisource Agreement (MSA) compatible and designed for operation at 1310 nm and 1550 nm. Although optimized for OC-48/STM-16, it provides multi-rate capabilities and can be used from OC-3/STM-1(155 Mb/s) up to 2.7 Gb/s. MultiRate SFP transceiver provides a fully OC-48 SONET compliant interface between the SONET/SDH photonic layer and the electrical layer. Its microprocessor - based modular design implements all features specified in the SFP MSA compatible 2-wire Serial Digital Diagnostic Monitoring Interface for Optical Transceivers. OC-48 / STM-16 is a network line with transmission speeds of up to 2488.32 Mbit/s (payload: 2405.376 Mbit/s; overhead: 82.944 Mbit/s).
Key Features
Data-rate of 2.67Gbps operation 10km with 9/125 µm SMF 1310nm DFB/FP laser transmitter Hot-pluggable SFP footprint duplex LC connector Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant Compliant with SFP MSA Compliant with SFF-8472 Single 3.3V Power Supply and LVTTL Control Logic InterfaceAverage Output Power:-11.7~ -3dBm Receiver Sensitivity:-18dBm
Applications
SONET OC-48 IR-1/SDH STM S-16.1 SONET OC-12 SR/SDH STM-I-4SONET OC-3 SR/SDH STM-I-1Gigabit Ethernet/1x/2x Fiber ChannelOther Optical Links
Ordering Information
Pa No. Data Rate (Gbps) Wavelength (nm) TX Power (dBm) Re Sens. (dBm) Transmission Distance Fiber Type Connector Type Temp. Range Digital Diagnostics
SFP-2G31-2-xx ≤ 2.67 1310 -10 ~ -3 ﹤-18 2km MMF LC Com./Ex./Ind. Yes/No
SFP-2G31-10-xx ≤ 2.67 1310 -11.7 ~ -3 ﹤-18 10km SMF LC Com./Ex./Ind. Yes/No
SFP-2G31-15-xx ≤ 2.67 1310 -5 ~ 0 ﹤-18 15km SMF LC Com./Ex./Ind. Yes/No
SFP-2G31-40-xx ≤ 2.67 1310 -2 ~ 3 ﹤ -27 40km SMF LC Com./Ex./Ind. Yes/No
SFP-2G55-40-xx ≤ 2.67 1550 -2 ~ 3 ﹤ -20 40km SMF LC Com./Ex./Ind. Yes/No
SFP-2G55-80-xx ≤ 2.67 1550 -2 ~ 3 ﹤ -28 80km SMF LC Com./Ex./Ind. Yes/No
SFP-2G55-100-xx ≤ 2.67 1550 0 ~ 5 ﹤ -29 100km SMF LC Com./Ex./Ind. Yes/No
SFP-2G55-120-xx ≤ 2.67 1550 2 ~7 ﹤ -30 120km SMF LC Com./Ex./Ind. Yes/No
Notes xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply SFP-2G31-10-xx according to your requirements, and design SFP-2G31-10-xx label and packaging for your company. We welcome any inquiry for customized 2.67G SONET/SDH SFP optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.



Details


Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying 2.67G SONET/SDH SFP From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of 2.67G SONET/SDH SFP transceivers. All of our 2.67G SONET/SDH SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 2.67G SONET/SDH SFP transceivers to work in your system and all of our 2.67G SONET/SDH SFP transceivers come with a lifetime advance replacement warranty. If you have questions about 2.67G SONET/SDH SFP optics, please feel free to contact us at sales@fiberinthebox.com .
