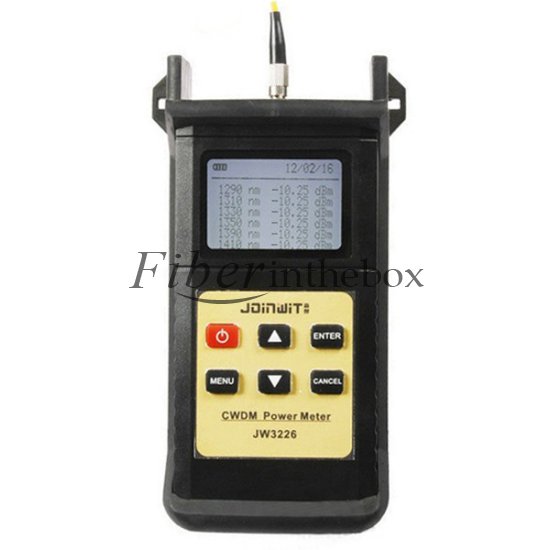

Handheld CWDM Power Meter JW3226 optical power range -50~+6dBm

SKU#:FITB32250MQF
Model#: JW3226
Price: US$ 1,784.10
Sold: 792
Availability: In Stock
Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
JW3226
JW3226 CWDM Power Meter is a handy measuring instrument which is specially designed for CWDM system, covers wavelength from 1470~1610nm. It can measure and monitor optical power and attenuation value at the calibrated wavelengths of 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm and 1610nm. Testing at all calibrated wavelengths will be performed simultaneity and all testing results will be showed in the LCD display. JW3226 CWDM power meter features simple operation and quick response, which greatly improves the testing efficiency. Its high accuracy measurement and easy-to-use design becomes an ideal tester in CWDM system testing and CWDM installation and maintenance.
Key Features
CWDM system power meter JW3226Measure and monitor optical power and attenuation value at the calibrated wavelengths from 1470~1610nmLow-cost alternative solution to optical spectrum analyzers500 items storage & upload by USB
Specification
Model JW3226
Pass band(nm) 20
Calibrated wavelength(nm) 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610
Optical Power Range(dBm) +6~-50
Unce ainty(dB) ±0.4
Resolution(dB) 0.01
Data Storage 500records
Communication Po USB
Operation temperature(℃) -10~+60
Storage Temperature(℃) -25~+70
Auto Power-off (min) Auto power off after 10minutes idle time
Battery Working Hours(h) 120
Power Supply 3pcs 1.5V AA Alkaline batteries
Power Supply Adaptor(V) 8.4
Dimensions(mm) 180*90*36.5
Weight(g)Without batteries and rubber boot 420
