FC-FC Simplex Single-mode Bend Safe Curl Fiber Patch cord

SKU#:FITB35275BAQ
Model#: C-SM-FC-FC-SX-FITB
Price: US$ 7.27
Sold: 110
Availability: In Stock
Length:
Cable length could be customized in any length as you required.

Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-99US$ 7.27 100-299US$ 7.12 300-499US$ 6.98 500-999 Sign in to view 1000+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
FC-FC Simplex Single-mode Bend Safe Curl Fiber Patch cord

Curl Fiber patch cord is retractable and usable in household wiring and wiring for movable pa s of machines.The curl length(cm) and total length can be customed according to the customer’s requirements in Fiberinthebox.


The meters is point to the length of the cable after straightening. Bending diameter, Bending laps could be customized according to the total length you required.

Features
It can stretch several times without deteriorating the optical characteristics. It can adjust length of cable It is durable enough to be used for movable pa s of machines and as a connecting cord for instruments.
Applications
Telecommunication, remote ONU & FTTX. Data communication, CATV & test equipment. Fast deployable local area network. Fast In‐pipe wiring. Robotic arm sensor communication

Specifications

Cable OD(mm)

2 or 3

Curl OD(mm)

18-22

Curl Length(cm)

According to the customer’s requirements

Total Length(cm)

According to the customer’s requirements

Faber Type

Bendsafe G657B

Cable Material

TPU(white)

Connector Type

FC/UPC、FC/UPC

Inse ion Loss(dB)

<1dB for 100 turns

Reture Loss(dB)

UPC>=50,APC>=60

Operating Temperature(℃)

-40℃~+80℃

Storage Temperature(℃)

-45℃~+85℃

Fireproof standard

IEC 60332-3

RoHs 2002/95/EC directive

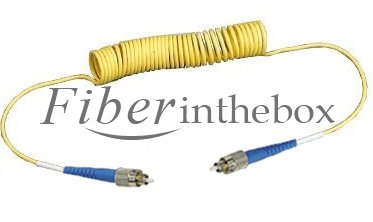

Sample Picture






Application Drawing



Mechanical Drawing






Fiberinthebox is an professional manufacturer & supplier of Curl Fiber Patch , it could be customized in any length. If you have any question about it,please feel free contact us at sales@fiberinthebox.com
