Fixed Flange SC/UPC Fiber Optic Attenuator 1~25dB optional

SKU#:FITB42028IQC
Model#: AT-F-SCU
Price: US$ 1.59
Sold: 1960
Availability: In Stock
:
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 1.59 10-19US$ 1.55 20-49US$ 1.52 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification

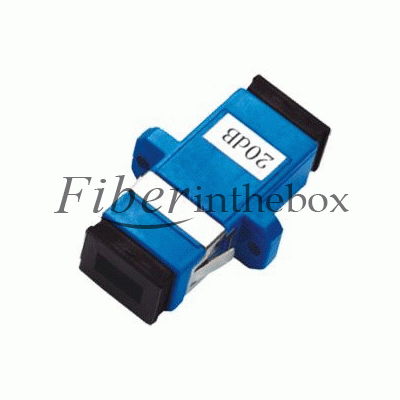

Fixed Flange SC/UPC Fiber Optic Attenuator 1~25dB optional
Fixed Attenuators are used in applications where a pre-determined amount of light loss is specified.
We offer LC,FC,SC,ST,MU fixed attenuator with different attenuation level, from 1dB to 25dB.
Key Features
Bellcore Compliant Wavelength Independent Durability & Simple and Reliable Structure
Specifications
Operating Wavelength: SM: 1310nm, 1550nm MM: 850nm, 1300nm Return loss:Less than 55dB (UPC) Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30) Polarization Dependent Loss: Less than 0.2dB Max. Optical Input Power: 200mW Operating Temp Range: -40~80°C
