OEM & Custom

Custom Capabilities Fiberinthebox has built its reputation as a leading supplier of high integrity optical communication products assemblies by sourcing only the highest quality products as well as being committed to our customers' needs.

For the most challenging optical communication situations, we provide customized solutions for all needs and specifications. From Fiber Patch Cables and Connectors to transceiver and CWDM/DWDM, Fiberinthebox can work with your preexisting designs as an outsourced manufacturing partner or assist you in rapidly achieving tailored answers for demanding optical fiber communication products. All in all, about eighty percent of the varieties on our website can be custom made. Let Fiberinthebox be your custom fiber optic solution.

Fiberinthebox provides optical and electronic engineering services. We welcome any inquiry for customized optical and electronic solutions for optical communication industry, including rugged fiber optic components for the commercial and aerospace, military, and industrial markets or where data communication and sensing is required over fiber optic networking in harsh environments. Our primary corporate capabilities include software engineering, systems engineering, network engineering, systems support, program management, and information assurance engineering and analysis. We have built strong industrial relationships based upon our ability to provide high quality engineering services, and to always strive to be a fair and responsive partner.

Custom OEM Fiber Optic Transceivers

We offers our customers turn key solutions, including the following value added services:

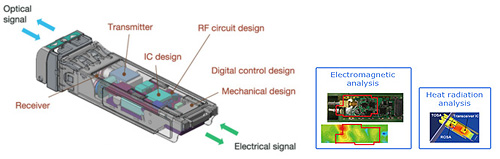

Product Design: -Optical design; -Mechanical design; -Printed Circuit Board (PCB) layout and electrical design; -Software & firmware design; -integrated assembly; -packaging optimization; -specific labels as request
Testing: -Optical; - Electrical; -Reliability (environmental & stress); -Compliance; -Subsystems integration
We also supply custom transceivers in other specifications, you can see details in the following table. If you have any other special requirement, pls contact us directly.



Custom Information( "﹡" stands for Customer Specified )
  GBIC SFP SFP+ XFP XENPAK X2
Wavelength(nm) 850, 1310, 1550  850, 1310, 1550  850, 1310, 1550  850, 1310, 1550  850, 1310, 1550  850, 1310, 1550
1470~1610(in 20nm increments) 1270~1610(in 20nm increments) 1270~1610(in 20nm increments) 1270~1610(in 20nm increments) 1470~1610(in 20nm increments) 1470~1610(in 20nm increments)
Transmission Distance  100m, 550m, 10km, 20km, 40km, 80km 100m, 550m, 10km, 20km, 40km, 80km, 120km 220m, 550m, 10km, 20km, 40km, 80km 550m, 10km, 20km, 40km, 80km, 120km 550m, 10km, 20km, 40km, 80km, 120km 550m, 10km, 20km, 40km, 80km, 120km
Channel CH17~CH61 CH17~CH61 CH17~CH61 CH17~CH61 CH17~CH61
Logo Fiberinthebox  Fiberinthebox  Fiberinthebox  Fiberinthebox  Fiberinthebox  Fiberinthebox
Generic Labels Generic Labels Generic Labels Generic Labels Generic Labels Generic Labels
No Labels No Labels No Labels No Labels No Labels No Labels
Package Antistatic bag  Antistatic bag  Antistatic bag  Antistatic bag  Antistatic bag  Antistatic bag
  Pallets in a Box Pallets in a Box Pallets in a Box Pallets in a Box Pallets in a Box Pallets in a Box
  Seperate White Box  Seperate White Box  Seperate White Box  Seperate White Box  Seperate White Box  Seperate White Box


Customize Your Own Standard Patch Cables to Your Preference

Using CAD drawings and rapid prototyping to help determine customers' specific application requirements, Fiberinthebox provide a consultative approach to engineering custom cables. What's more, all custom cables are backed by a lifetime guarantee against defects in workmanship.

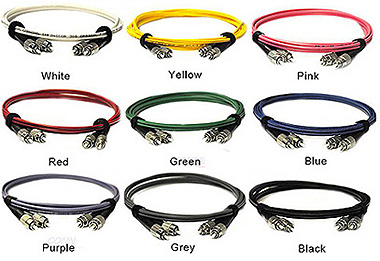

Available Colors:

Our Advantages:
Any Type. Any Length. Any Color!
All Custom & OEM quote are returned to the customer within one business day.

Quick transition manufacturing to high-production facility in China to help customers get economies of scale while still maintaining critical timelines.
Guaranteed cable quality.
Quick engineering and prototyping services.
Production and kitting of value-added cable assemblies that include PCBs, housing, or metal fabrication.
Custom Color MMF or SMF cables, Available colors: Red, Gray, Blue, White, Black, Green, Yellow, Pink and purple.



Custom Information( "﹡" stands for Customer Specified )
Fiber Type G.652
9/125
G.657 G.655
9/125
 OM1
62.5/125
 OM2
50/125
 OM3
50/125
 OM4
50/125
Connector Type SC,FC,LC,
ST,MTRJ,MU,E2000
SC,FC,LC,ST,
MTRJ,MU,E2000
SC,FC,LC,ST,
MTRJ,MU,E2000
SC,FC,LC,ST,
MTRJ,MU,E2000
SC,FC,LC,ST,
MTRJ,MU,E2000
SC,FC,LC,ST,
MTRJ,MU,E2000
Polishing Type PC, UPC, APC PC, UPC, APC PC, UPC, APC PC, UPC, APC PC, UPC, APC PC, UPC, APC
Cable Length(m) 1~1000 1~1000 1~1000 1~1000 1~1000 1~1000
Cable Type Simplex, Duplex  Simplex, Duplex  Simplex, Duplex  Simplex, Duplex  Simplex, Duplex  Simplex, Duplex
Cable Diameter(mm) 0.9, 2.0, 3.0, 5.5 0.9, 2.0, 3.0, 5.5 0.9, 2.0, 3.0, 5.5 0.9, 2.0, 3.0, 5.5 0.9, 2.0, 3.0, 5.5 0.9, 2.0, 3.0, 5.5
Cable Color Yellow, Orange, Aqua  Yellow, Orange, Aqua  Yellow, Orange, Aqua  Yellow, Orange, Aqua  Yellow, Orange, Aqua  Yellow, Orange, Aqua
Cable Jacket Fire Rating Riser Rated (OFNR) Riser Rated (OFNR) Riser Rated (OFNR) Riser Rated (OFNR) Riser Rated (OFNR) Riser Rated (OFNR)
Plenum Rated (OFNP) Plenum Rated (OFNP) Plenum Rated (OFNP) Plenum Rated (OFNP) Plenum Rated (OFNP) Plenum Rated (OFNP)
Low Smoke Zero Halogen (LSZH) Low Smoke Zero Halogen (LSZH) Low Smoke Zero Halogen (LSZH) Low Smoke Zero Halogen (LSZH) Low Smoke Zero Halogen (LSZH) Low Smoke Zero Halogen (LSZH)

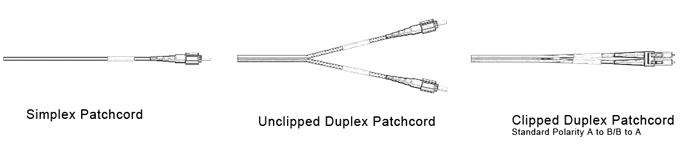

Flexible format of Patch Cables

Custom OEM PLC Splitter

We provide whole series of 1xN and 2xN (N = can be from 1... 64) PLC splitter products that are tailored for specific applications. We offer both custom design and cost-effective manufacturing techniques (whether domestic short-run or off-shore large volume production) to ensure you get the right solution right on time. Different package and logo can follow client’s different inquiry. You can check the following specifications of custom PLC Splitter. If you have any other special requirement, pls contact us directly.

Custom Information( "﹡" stands for Customer Specified )
Package Type Configuration Fiber Style  Length of Pigtail Connector Dimension
Bare Fiber 1×N PLC Splitter  250um, 0.9mm  1.5m SC/PC,FC/PC,LC/PC 40×4×4, 50×4×4, 50×7×4, 60×7×4, 60×12×4
2×N PLC Splitter                          N = can be from 1... 64   SC/APC,FC/APC,LC/APC
Mini Module 1×N PLC Splitter  0.9mm, 2.0mm, 3.0mm  1.5m SC/PC,FC/PC,LC/PC 100×80×10, 120×80×18, 140×115×18
2×N PLC Splitter                          N = can be from 1... 64   SC/APC,FC/APC,LC/APC
With Fan-out 1×N PLC Splitter 0.9mm, 2.0mm, 3.0mm  1.5m SC/PC,FC/PC,LC/PC 100×80×10, 120×80×18, 140×115×18
2×N PLC Splitter                          N = can be from 1... 64   SC/APC,FC/APC,LC/APC
With Rack Mount 1×N PLC Splitter  2.0mm, 3.0mm  1.5m SC/PC,FC/PC,LC/PC 19" 1U, 19" 2U
2×N PLC Splitter                          N = can be from 1... 64   SC/APC,FC/APC,LC/APC
With LGX Metal Box 1×N PLC Splitter  2.0mm, 3.0mm  1.5m SC/PC,FC/PC,LC/PC LGX 1U, LGX 2U
2×N PLC Splitter                         N = can be from 1... 64   SC/APC,FC/APC,LC/APC

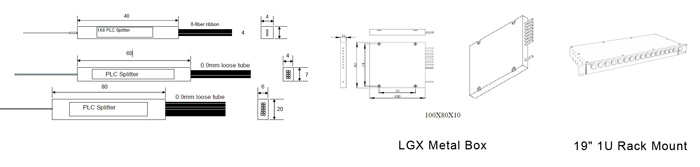

Package Type:

We also can combine two or three or others PLC Splitter modules into one Rack Mount box.

For example:

Let Us Work With You On Your Custom Fiber Optic Cables

We supply fiber optic cables and assemblies with glass, plastic and quartz fibers. We offer a wide variety of sheathing options, with standard or custom end fittings for your application and operating environment. We partner with our OEM customers in the design, material selection and manufacturing for high temperature or other environmental needs. All our OEM fiber optic cables are manufactured and monitored to ensure compliance with our client’s predefined specifications. You can see the specifications of custom fiber optic cables in the following table. If you have any other special requirement, pls contact us directly.

Custom Information( "﹡" stands for Customer Specified )
Type Numbers of Core  Color (Sheath and Fiber Coating) Length Fiber Type Dimension Sheath Material
Outdoor Fiber Optic Cable 4, 6, 8, 12 Standard 1km~1000km Single-mode Standard PVC,TPU,LSZH,PE,PU
 -  -  - Multimode  -  -
Indoor Fiber Optic Cable 1, 2, 4, 6, 8  Standard 1km~1000km Single-mode Standard PVC,TPU,LSZH,PE,PU
 -  -  - Multimode  -  -
Fiber Armored Cable 1, 2, 4, 6, 12, 24 Standard 1km~1000km Single-mode Standard PVC,TPU,LSZH,PE,PU
 -  -  - Multimode  -  -
FTTH Fiber Cables 1, 2 Standard 1km~1000km Single-mode Standard PVC,TPU,LSZH,PE,PU
 -  -  - Multimode  -  -

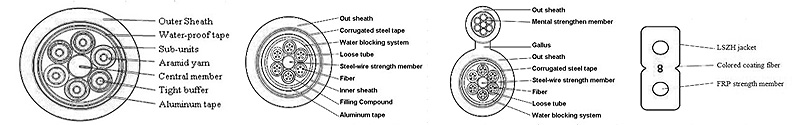

Several types of fiber optic cables as below:

Flexible Manufacturing Options For Your Custom Expanding Capacity Project

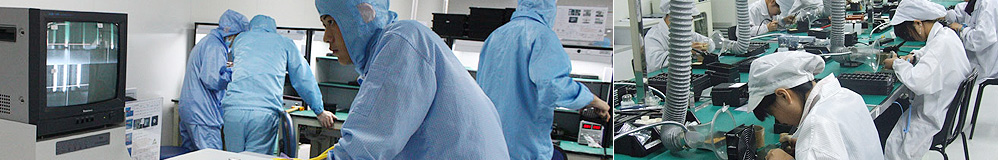

Our subsidiary factory is in Shenzhen City, southern China, near HongKong, providing fast access to freight forwarders. Our customers also can come to visit us conveniently. We are pleasure to invite customers to visit our company.

Our facility has its own unique capabilities and they provide a complete solution to support our diverse portfolio of OEM and custom CWDM & DEMUX MUX/DEMUX customers. We provide CWDM module and DWDM module devices with various kinds of connectors and cable length and optional stainless tube package or standard box package and to meet your requirement. We offer 1x2, 1x4, 1x8 ..... channels. Our CWDM module and DWDM module devices are configured by number of channels for any customer-specify channel plan, and can be integrated with taps and detectors for a complete WDM solution.

Custom Information( "﹡" stands for Customer Specified )
  CWDM MUX/DEMUX DWDM MUX/DEMUX OADM
Channel No. 1X2CH,1X4CH,1X5CH,1X8CH,
1X9CH,1X16CH,1X18CH
1X2CH,1X4CH,1X8CH,1X16CH,
1X32CH,1X40CH
1X2CH,1X4CH,1X8CH,1X16CH
Wavelength(nm) 1270~1610 or 1271~1611  1529.55~1560.61  1270~1610 or 1271~1611
Fiber Type(mm) 0.9, 2.0, 3.0 0.9, 2.0, 3.0 0.9, 2.0, 3.0
Length of pigtail 1.5m 1.5m 1.5m
Connector SC, FC, LC SC, FC, LC SC, FC, LC, ST
Port 1310nm Port 1310nm Port
Monitor Port Monitor Port
Upgrade Port Upgrade Port
Package with ABS Plastic Box: Mux, Demux or Mux+Demux  with ABS Plastic Box: Mux, Demux or Mux+Demux  with 1U 19 Rack Mount Box
with 1U 19 Rack Mount Box: Mux, Demux or Mux+Demux with 1U 19 Rack Mount Box: Mux, Demux or Mux+Demux with LGX Metal Box
with LGX Metal Box: Mux, Demux or Mux+Demux  with LGX Metal Box: Mux, Demux or Mux+Demux  With LGX Metal Box + 1U 19 Rack Mount Box: Mux, Demux or Mux+Demux
With LGX Metal Box + 1U 19 Rack Mount Box: Mux, Demux or Mux+Demux  With LGX Metal Box + 1U 19 Rack Mount Box: Mux, Demux or Mux+Demux
Dimension(mm) 100*80*10, 140*115*18 100*80*10, 140*115*18 100*80*10, 140*115*18

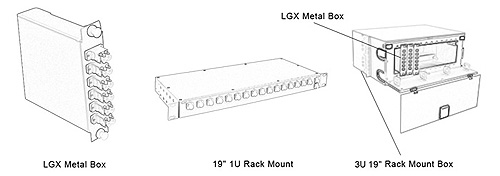

Any Package Type:

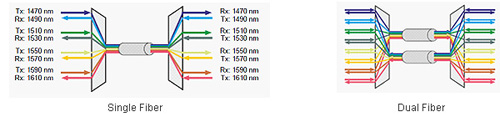

Single Fiber Application VS Dual Fiber Application

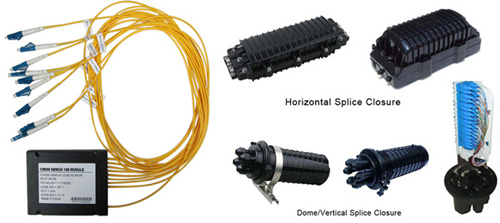

Other Single Fiber Type



Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.

a. Email (service@fiberinthebox.com) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Thank you for giving us the opportunity to earn your business. All custom products are guaranteed against manufacturing defect; however, please keep in mind all custom assemblies are non-cancelable and non-returnable once production begins. All of our optics come with a lifetime warranty.
