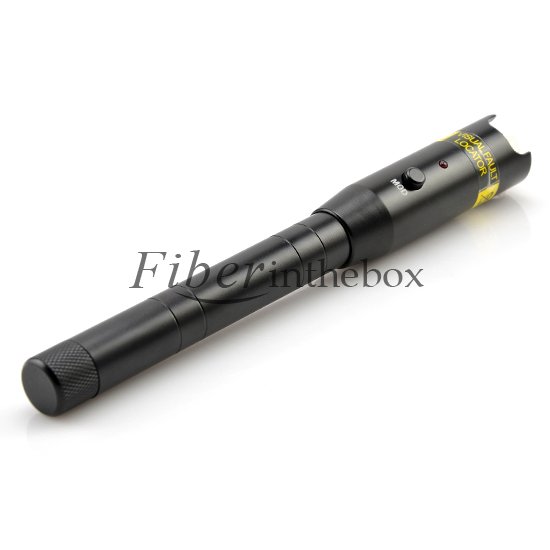

30mW New Visual Fault Locator Fiber Optic Laser Tester FS1565E (20-22km)

SKU#:FITB75556DMJ
Model#: FS1565E
Price: US$ 131.10
Sold: 2790
Availability: In Stock
Connector Type:
Qty:
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
FS1565 Series is high quality of optical fiber laser tester, which is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation.
It contains the most advanced laser technology and microelectronics technology, and can be measured with various optical fiber adapter with 2.5mm common Interface. It is very convenient in checking the single-mode and multimode fiber, and the Nanotechnology multi-static protection design and its light material made it more suitable for use. As for optical fiber laser tester FS1565E, its inspection distance is 20-22km. Please do not hesitate to contact us at sales@fiberinthebox.com if you have any questions or needs of this effective 5mW visual fault locator.

Main Features

F-P LD laser source
CW and MOD mode
FC SC and ST interface
Crash-proof and dust-proof design for laser head
High reliability power output
Low power consumption
Lower Battery warning
Laser case ground design prevents ESD damage
Nanotechnology multi-static protection
Shell durable
Pen-shaped design, po able and easy to use

Function
Fiber fracture and bending fault location
OTDR shadow of the failed inspection
End to end fiber identification
Mechanical access point optimization

Warranty and Shipping
1 year warranty is offered for this product. So you can buy it from us with confidence.
It is always in stock which usually be shipped out in a sho time, and a large quantity of it can be provided in 2-4 business days.
Our primary delivery method is FedEx overnight, it is very fast, and DHL, EMS, UPS are also available on request. That is to say. We can ship to all the countries that FedEx, DHL, EMS, UPS can arrive. You can also choose to let us give the goods to your own forwarder.

Packing Picture





Specifications

Type FS1565E
Laser Output 30mw
Wavelength 650±10 nm
Fiber Types SM MM
Optical Interface Universal Interface(FC,SC,ST)
Power Supply 2 x batteries
Operating Temperature(℃) 10~+60℃
Storage Temperature(℃) -40~+85℃
Shell Material Aluminum alloy
Battery Operating Time 20 minutes
Size Ð25*190mm
Weight 140g
