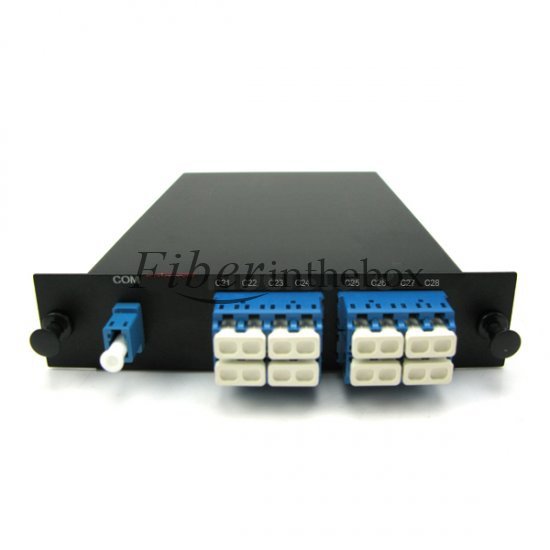

16 channels Simplex, 100GHz, DWDM Mux Only, LGX Box Module

SKU#:FITB70212LYL
Model#: 16MS-LGX-1-FITBDWDM
Price: US$ 564.27
Sold: 1438
Availability: In Stock
:
Grid Channel:
:
:
Special Service:
Express Ch. Port Isolation is 15dB
as default, need 16dB ~40dB,
please contact our sales.
Monitor Port Tap percentage is 5%
as default, need 1%, 2%, 3%, or 10%,
please contact our sales.
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 564.27 10-19US$ 552.99 20-49US$ 541.70 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Simplex DWDM MUX
Multiplexer (MUX) work with Demultiplexer (DEMUX) on the other side for single directional data transmission over one fiber.

DWDM Mux/Demux modules are pa of a series of high performance products based on silica-on-silicon planar technology. The AWG chips Fiberinthebox used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.
Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information

Front Panel Details

Note: Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same.
Item Details
16 channels DWDM mux in one LGX The channel spacing for DWDM is 0.8 nm (100 GHz grid). 1.6nm (200GHz) also available on request. Com po is simplex LGX Cassette Protocol transparent (10 Mbps to 100 Gbps) Distance: Up to 80 km depending on power budget of user equipment Low inse ion loss Excellent channel isolation Epoxy-free optical path Compliant to ITU-T G.694.1, Telcordia GR-1221-CORE and GR-1209 standard. ISO 9001 manufacturing facility
Mechanical Details for Housing
Please note that the drawings shown here only show the dimensions and do not the specific configuration of the module. Please also note that Fiberinthebox offers an innovative, robust Rack Mount Chassis for CWDM mux/demux, DWDM mux/demux , OADM unit and PLC Splitter LGX module for space saving and high-density applications.




Specifications

100 GHz DWDM
Channel Wavelength Ref. ITU Grid
Channel Spacing 100 GHz (0.8nm)
Channel Passband (nm) @ - 0.5dB 0.3
Number of Channels 2 4 8 16
Add/Drop Channel Insertion Loss (dB)* ≤ 1.5 ≤ 2.1 ≤ 3.0 ≤ 4.0
Express Channel Insertion Loss (dB)* ≤ 0.7 ≤ 1.2 ≤ 2.5 ≤ 3.5
Return Loss (dB) ≥ 45
Adjacent Channel Isolation (dB) ≥ 25 (DeMux)
Non-adjacent Channel Isolation (dB) ≥ 40
Wavelength Temperature Stability (nm/ ° C) ≤ 0.002
Insertion Loss Thermal Stability dB/ ° C ≤ 0.005
Channel Uniformity (dB) ≤ 1.5
Polarization Dependent Loss (dB) ≤ 0.2
Maximum Power Handling (mW) 250
Operating Temperature ( ° C) 0 to 65
Storage Temperature ( ° C) -40 to 85
*Note: Insertion Loss values do not include connector losses.
