Features
Dual Independent Splice Protection Heaters
RoHS Compliant
5.6” Switchable Color Monitor for Front to Back or Back to Front Operation
Automatic Splice and Heater Sta
Automatic Fiber Profiling Detection
Complete Splice in Less than 40 Seconds
Built-In LED for V-Groove Illumination
User-Friendly Menu Selection System
Easier to Load Fiber Holder Unit (Type-39FH)
Splice-On Connector Compatible (Type-39FH)
24-Hour Technical Suppo via 888-SPLICER
|
Specifications |
|
|
RoHS |
Compliant (engineered to be more environmentally friendly) |
|
Fiber Requirement |
Silica Glass |
|
Coating Diameter |
100 and 1000μm |
|
Cladding Diameter |
80 to 150μm |
|
Cleave Length |
8 to 16 mm (under 250μm coated fiber) |
|
Typical Splice Loss, Identical Fibers |
SMF: 0.02dB |
|
Number of Fiber Profiles |
48 Customizable |
|
Number of Pre-Installed Heater Profiles |
20 Customizable |
|
Internal Splice Data Storage |
10,000 |
|
Monitor Position |
Multiple Position Monitor |
|
Interface |
USB Po for PC Interface |
|
Dual Independent Heaters |
Each Heater: 25 seconds 40mm sleeve |
|
Typical Splice Time |
9 Seconds Splice Cycle Time |
|
Language Selections |
16 |
|
Arc Test |
Automatically Compensates for |
|
Menu Selection |
User Friendly Menus |
|
Return Loss |
<-70dB |
|
Proof Test |
Internal 200g (Std.), 400g (Optional) |
|
Attenuation Splicing |
Up to 15dB in increments of 0.01db |
|
Loss Estimation Process |
High-resolution Direct Core Monitoring (HDCM) |
|
Image Display |
Dual or Single Fiber Imaging X/Y |
|
Size |
150W x 150D x 150H mm |
|
Weight |
2.8 kg (6.2 lbs) |
|
Power Requirement |
Input: 100 to 240V AC; |
|
Display |
5.6 Inch TFT Low Glare High |
|
Battery Operation |
Standard: 100 Splices & Heater Cycles |
|
Wind Protection |
30 mph (15 m/s) |
|
Type 39-KIT-2 Standard Package |
|
Type-39 Core Alignment Fusion Splicer with Built-in Dual Heat Shrink Ovens, AC Interface/Battery Charger, Long Life Battery, Hard Transit Case, Spare Electrodes, Cleaning Tools, Shrink Sleeve Cooling Tray, Fiber Protection Sleeves, Manual, Jacket Remover, Precision Cleaver |

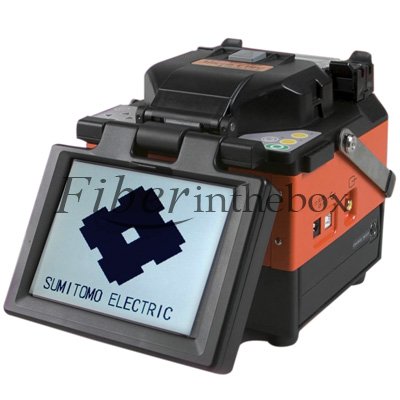

Fiber Optic Fusion splicer is a must in the process of properly joining two bare optical fibers together. For this kind of fine workmanship product, we Fiberinthebox.com provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of the Sumitomo Type-39 Dual Heater Core Alignment Fusion Splicer, please feel free to contact us. We will try our best to provide you the best service.
Note: It has stopped production.
|
|
|
|
RoHS |
Compliant (engineered to be more environmentally friendly) |
|
Fiber Requirement |
Silica Glass |
|
Coating Diameter |
100 and 1000μm |
|
Cladding Diameter |
80 to 150μm |
|
Cleave Length |
8 to 16 mm (under 250μm coated fiber) |
|
Typical Splice Loss, Identical Fibers |
SMF: 0.02dB |
|
Number of Fiber Profiles |
48 Customizable |
|
Number of Pre-Installed Heater Profiles |
20 Customizable |
|
Internal Splice Data Storage |
10,000 |
|
Monitor Position |
Multiple Position Monitor |
|
Interface |
USB Port for PC Interface |
|
Dual Independent Heaters |
Each Heater: 25 seconds 40mm sleeve |
|
Typical Splice Time |
9 Seconds Splice Cycle Time |
|
Language Selections |
16 |
|
Arc Test |
Automatically Compensates for |
|
Menu Selection |
User Friendly Menus |
|
Return Loss |
<-70dB |
|
Proof Test |
Internal 200g (Std.), 400g (Optional) |
|
Attenuation Splicing |
Up to 15dB in increments of 0.01db |
|
Loss Estimation Process |
High-resolution Direct Core Monitoring (HDCM) |
|
Image Display |
Dual or Single Fiber Imaging X/Y |
|
Size |
150W x 150D x 150H mm |
|
Weight |
2.8 kg (6.2 lbs) |
|
Power Requirement |
Input: 100 to 240V AC; |
|
Display |
5.6 Inch TFT Low Glare High |
|
Battery Operation |
Standard: 100 Splices & Heater Cycles |
|
Wind Protection |
30 mph (15 m/s) |
