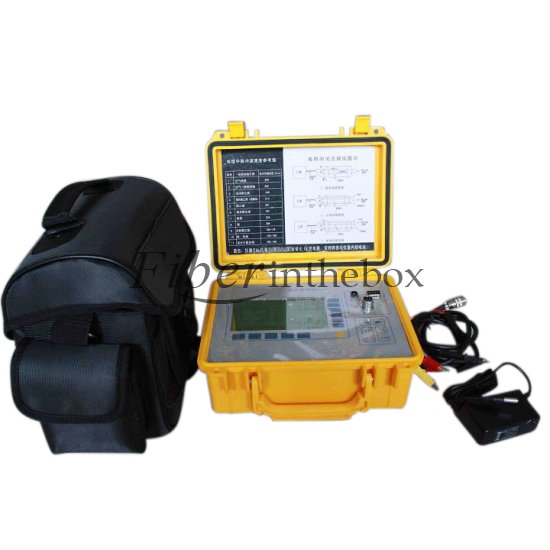

Telecom Fiber Optic Cable Fault Locator--TL210

SKU#:FITB33300UXM
Model#: TL210
Out of stock
Description
TL210 Telecom Cable Fault Locator is a po able open-air instrument working on TDR and bridge methods, adopting advanced micro-electronics technology. It is designed to locate accurate fault points in such cables as telecommunication plastic cable or user’s lead covered wire, while the faults include break, mix, ea h, defective insulation, or poor connecting. It is an ideal function-stable instrument for the open-air operator to improve work efficiency; in addition, it can also be used for circuitry project checking electric prope y testing of the cable.
Features
1. Combining both TDR and Bridge testing modes
2. Automatic measurement to find fault point
3. Manual measurement is also available
4. Easy to use Menu driven operation
5. Cherishing the functions of Tram egger and Ohmmeter, which can test insulation resistance and loop resistance
6. 10 test results can be stored permanently even there is a power off, which much convenient than print
7. It adopts automatic gain and impendence technology, instead of complex potentiometer regulation
8. High resolution backlight LCD display
9. Power supply: Rechargeable Lithium ion battery 10. Small size, simple operation

Fiberinthebox is specializing in manufacturing optical transceivers and subsystem for optical fiberal communications in Metro Networks, Access Networks, Fiber Channel, and FTTX, etc. That means, we are specializing in supplying optical fiber components and network equipment. And if you are interested in this TL210 Telecom Fiber Optic Cable Fault Locator and want to know more details, welcome to contact us. We will provide you a special discount at a large quantity.



Specifications
Technique
1. TDR Mode
a. Max. Measurement distance: 8km, the range can be set according to length of the cable
b. Measurement dead zone: 0m
c. Measurement accuracy: 1m (Range<2km), 8m (Range>2km)
d. Pulse width: 80ns-10μs, can be set automatically
e. Impedance balance can be set automatically
f. Automatic and manual modes of gain adjustment
g. Intelligent bridge measurement mode
h. Max Resistance of defective insulation: 100MΩ
i. Measurement accuracy: ±1% x length of the cable
j. Max. Measurement range: 9999m
k. Input by three segments, and the wire radius is 0.3mm-0.99mm

2. Capable of giving five hours of uninterrupted working
